SpeedyBee Master3X Modular Frame (O4P-Aluminum Alloy Head) 3-3.6 Inch FPV Freestyle Frame Kit
₹4,695.00 (Incl. GST)
In stock
Description
SPECIFICATIONS:
- Frame: SpeedyBee Master3X Frame

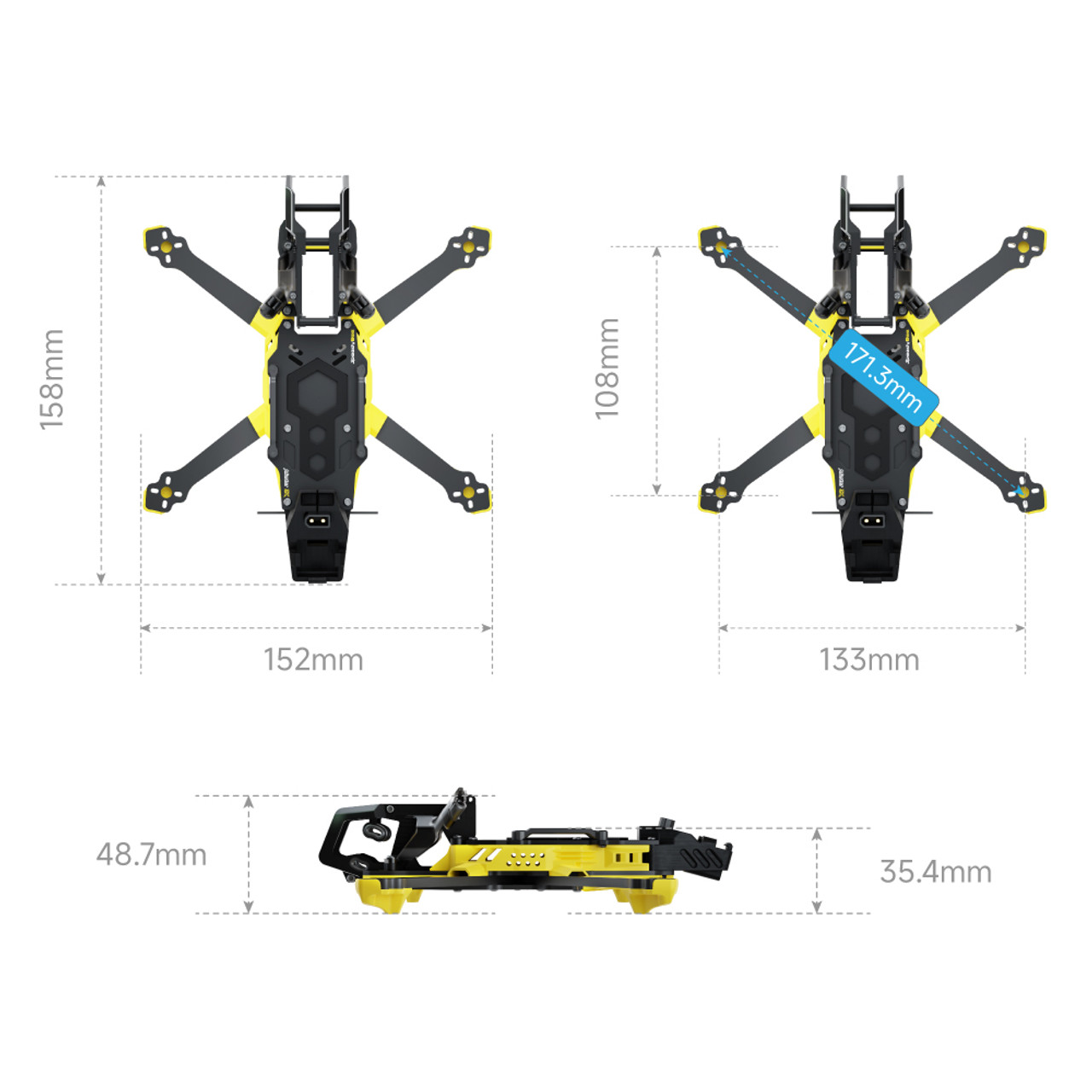

- Wheelbase: 171mm
- Carbon plate thickness: Top plate: 2.0mm, Middle plate: 2.0mm, Bottom plate: 2.0mm, Arm: 4.0mm
- Camera installation pitch: 19/20mm
- Stack installation height: 11mm
- Stack mounting holes: 25.5*25.5mm
- Compatible VTX: DJI O4 Pro
- O4 Pro Aluminum alloy head (O4Pro)
- Propeller size: 3–3.6 inches
- Motor mounting holes: 9–12mm
- Weight: 87±2g (Without head)
- Recommended motor: 1507 / 1804 / 2004 / 2006 / 2105.5
- Recommended KV:
- 4S: 3000KV–3600KV
- 6S: 2200–2750KV
- Max supported battery size: 67mm (L) × 31mm (W) × 40mm (H)
- Recommended battery:
- 4S LiPo / LiHv 750mAh–1100mAh
- 6S: 650–850mAh
- GPS supported size: 18.1*18.1mm (Other sizes require replacement of printed parts
DOWNLOADS:
Manual: SpeedyBee Master3X Modular Frame (O4P-Aluminum Alloy Head) Manual
Additional information
| Weight | 145 g |
|---|---|
| Brand |
SpeedyBee |
| Propeller Size |
3.5" Props ,3" Props |
