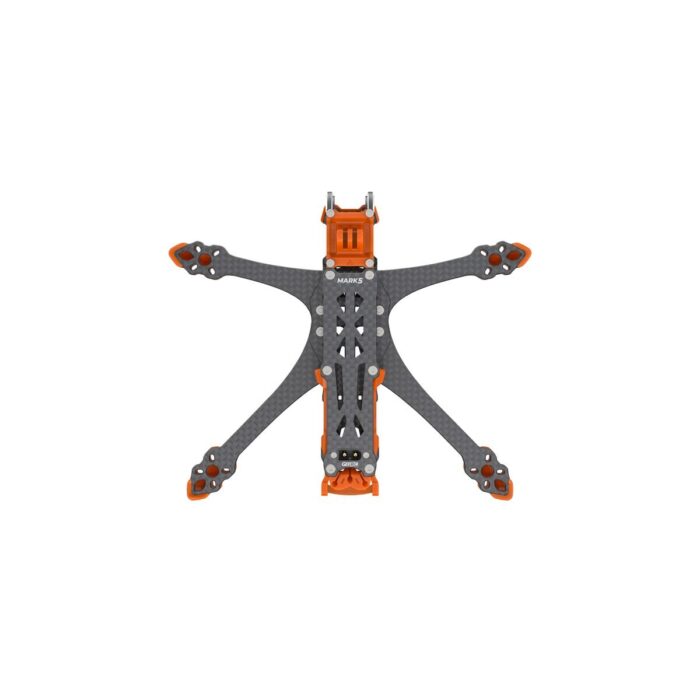

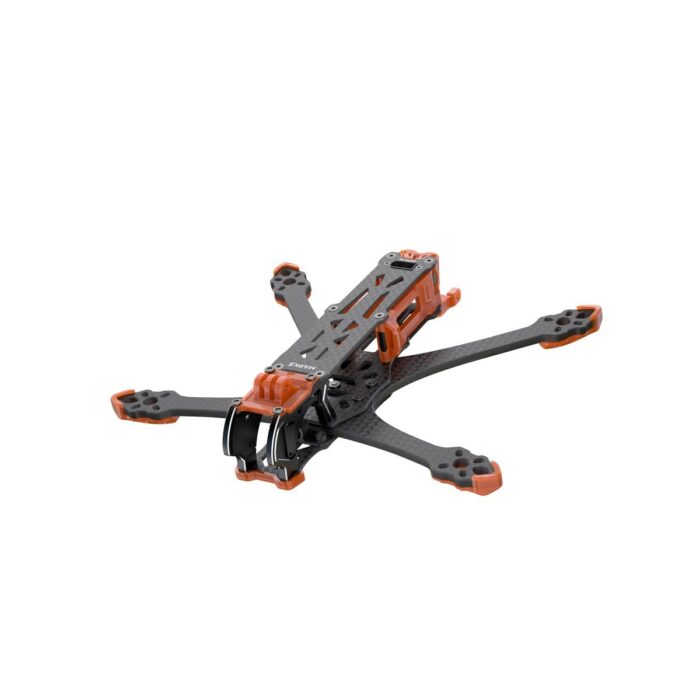

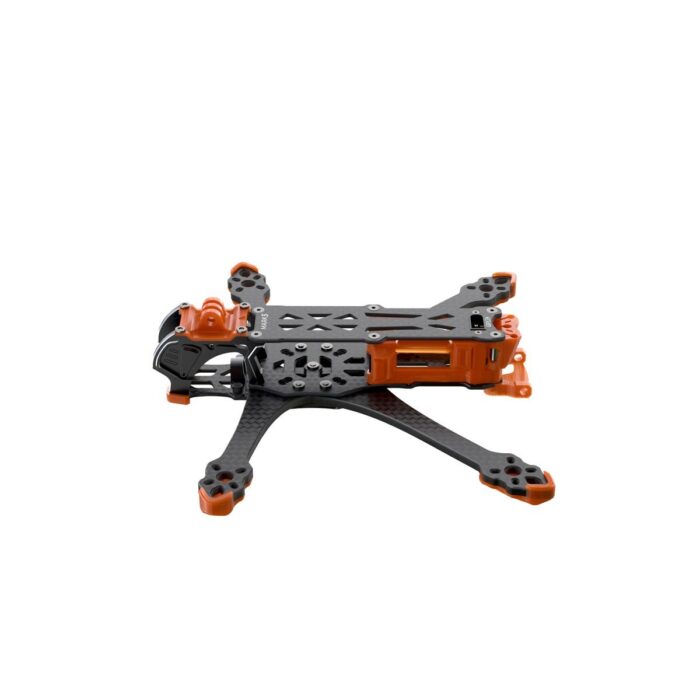

GEPRC MK5 DC 5inch O4 Pro FPV Drone Frame Kit

The GEPRC MK5 O4 Pro is the latest evolution of the popular MARK5 frame series, purpose-engineered to unlock the full potential of the DJI O4 Air Unit Pro. With a redesigned camera mount and innovative silicone shock absorption, this frame delivers smoother footage and rock-solid flight stability — ideal for cinematic and freestyle pilots who demand peak performance.

Whether you’re flying freestyle, chasing landscapes, or filming cinematic FPV, this frame is a rock-solid foundation for your build.

FEATURES:

1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

2. DC and wide X shapes, fit for a variety of flying situations.

3. Two TPU camera mounts, compatible with all action cameras.

4. Quick-release arms with just two screws for easy swapping.

5. 3K carbon fiber frame that is lighter, stronger, and more durable.

SPECIFICATIONS:

DC Specifications

• Model: GEP-MK5 O4 Pro DC  Frame
• Wheelbase: 230mm
• Weight: 197.0g ± 10g
• Color: emerald green / coral orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

Wide X Specifications

• Model: GEP-MK5 O4 Pro wide X Frame
• Wheelbase: 225mm
• Weight: 165.1g ± 10g
• Color: emerald green/coral orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

PACKAGE INCLUDES:

• 1 x GEP-MK5 O4 Pro Frame
• 1 x 15*250mm heavy-duty Velcro straps
• 2 x Battery anti-slip pads
• 1 x 3D printouts pack
• 2 x 20*250mm rubber anti-slip straps
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2mm
• 1 x L-shaped screwdriver 3mm
• 1 x M8 wench
• 1 x Screw pack
