Flywoo GOKU F405 HD 1S 5A ELRS AIO V2.0
₹6,985.00 (Incl. GST)
✅Ultra-mini 1S HD camera compatible, STM32F405 MCU
✅Cross-shaped design fits all 1S frames , 2.6g
✅Onboard Flywoo O4 5V BEC
✅Integrated ELRS 2.4G receiver with TXCO for stable signal and low latency
✅Built-in ICM42688P gyro and 8MB black box
Only 1 left in stock
This Flywoo GOKU F405 HD 1S 5A AIO V2 is tailored for ultra-micro 1S HD drones, building on V1’s strengths with key upgrades.
At its core is the STM32F405 BGA micro MCU, delivering 168MHz high-frequency performance, low power consumption, and a mere 2.6g weight. Its innovative cross-shaped design fits all 1S frame kits.
Key V2 upgrades: On-board Flywoo 1S O4 5V BEC supports a minimum operating voltage of 2.6V when paired with DJI O4 VTX. It matches V1 exactly in weight, performance, and shape for a seamless classic experience.
Also integrated are an ELRS 2.4GHz receiver and TXCO (Temperature-Compensated Crystal Oscillator) for stable, low-latency signals. On-board ICM42688p gyro and 8MB Betaflight black box enable flight data recording and analysis—making it an ideal choice for both pros and beginners building ultra-micro 1S HD drones
FEATURES:
- On board FLYWOO O4 1S 5V BEC module, it can achieve a minimum voltage of 2.6V.
- Integrated Serial ELRS 2.4GHz receiver (with TCXO crystal oscillator for superior precision and stability)
- STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
- Equipped with ICM-42688P gyro and 8MB Betaflight Blackbox flash memory
- Ultra-compact, slim, cross-shaped PCB layout compatible with all popular 1S frames
- Specifically optimized for 1S HD drone setups, including Walksnail, HDZero, and DJI O4 systems

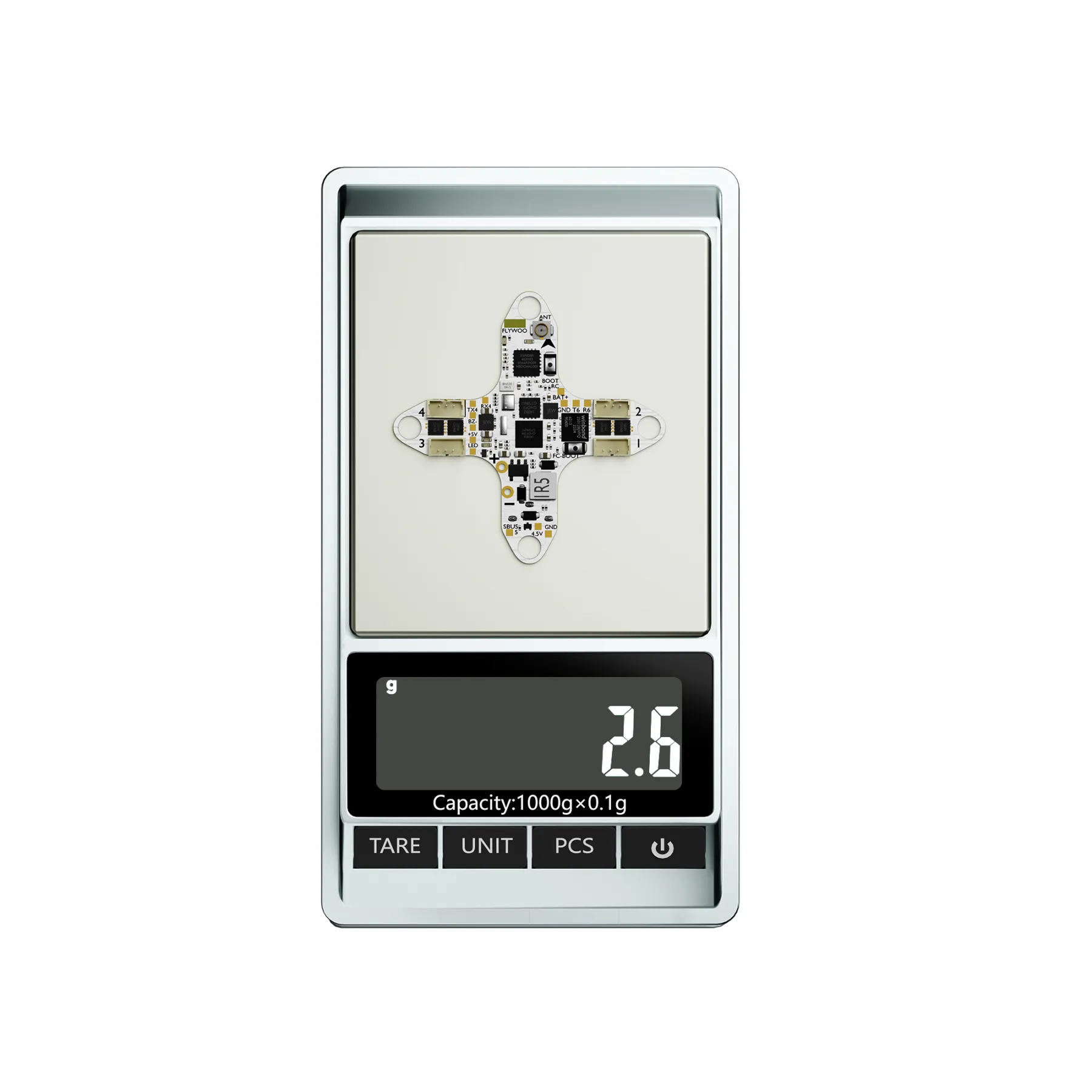

- Weighs just 2.6g without motor connectors—the industry’s lightest 1S AIO solution
- Pre-soldered motor connector
SPECIFICATIONS:
|
Product Name
|
GOKU F405 HD 1S 1S 5A AIO V2.0 w/TCXO ELRS
|
| MCU |
STM32F405BGA
|
| IMU |
ICM42688P
|
| Barometer |
SPL06
|
| Black Box |
8M
|
| OSD Support |
No
|
| UART |
UART 3（For ELRS),UART4,UART5(SBUS),UART
|
| Protocols |
CRSF, SBUS, iBus, Spektrum
|
| BEC |
BEC:5V 3.0A MAX（Support DJI O4 Air Unit）
|
| RX |
Flywoo TCXO EL24E 2400 RX 3.0.0
|
| FC Firmware |
FLYWOOF405S_AIO
|

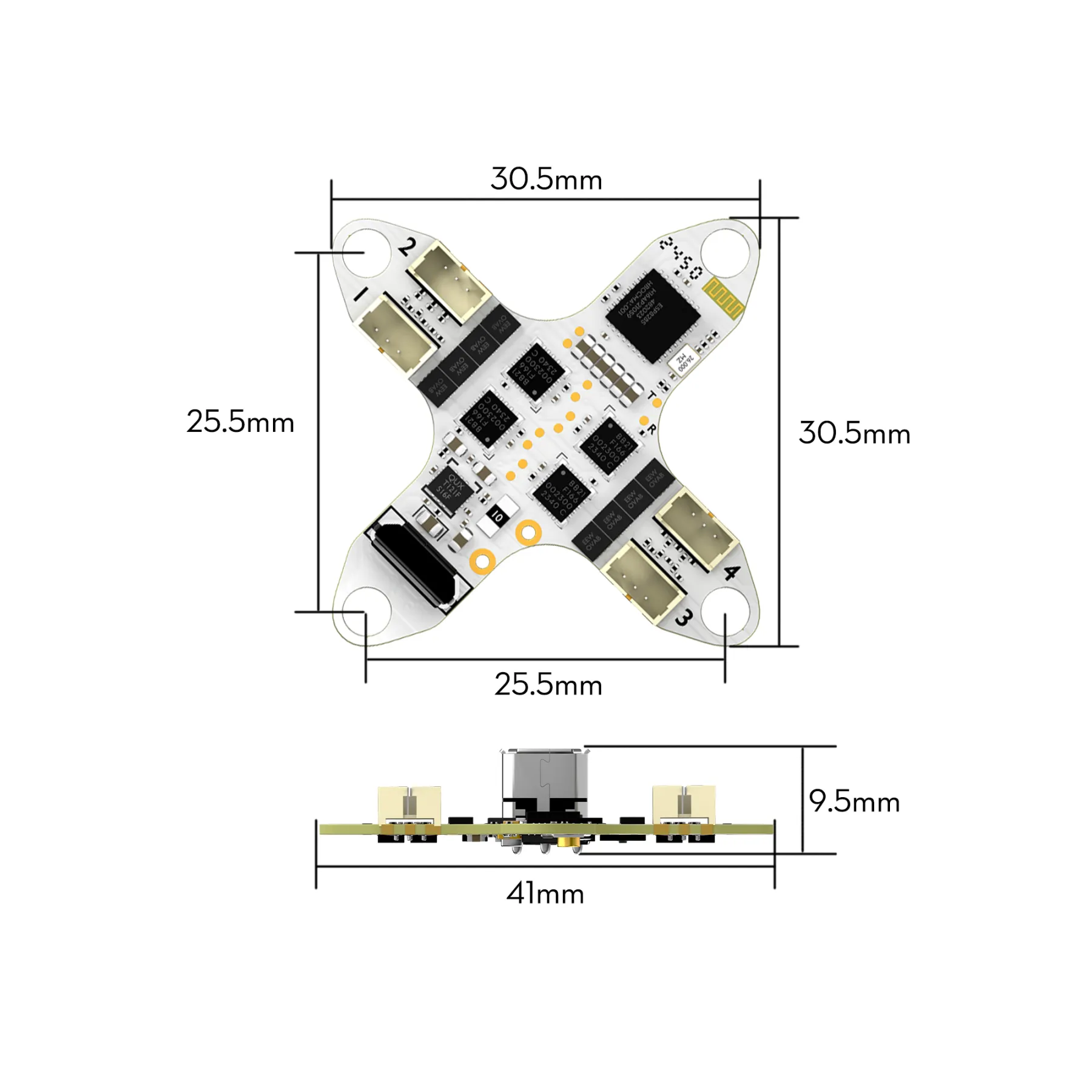

| Dimensions |
30.5 x 30.5mm
|
| Mounting Holes |
Standard 25.5/25.5mm square to center of holes
|
| Weight |
2.6g
|
|
Product Name
|
Onboard 4in1 ESC
|
| Power input |
1S Only
|
| Current |
5A continuous, 8A peak
|
| ESC firmware |
O_H_5_48KHz_V0.19.hex Bluejay firmware
|
| Digital signal protocol |
DShot300, DShot600
|
| Motor Connector |
JST1.25
|
| Battery connector |
A30
|

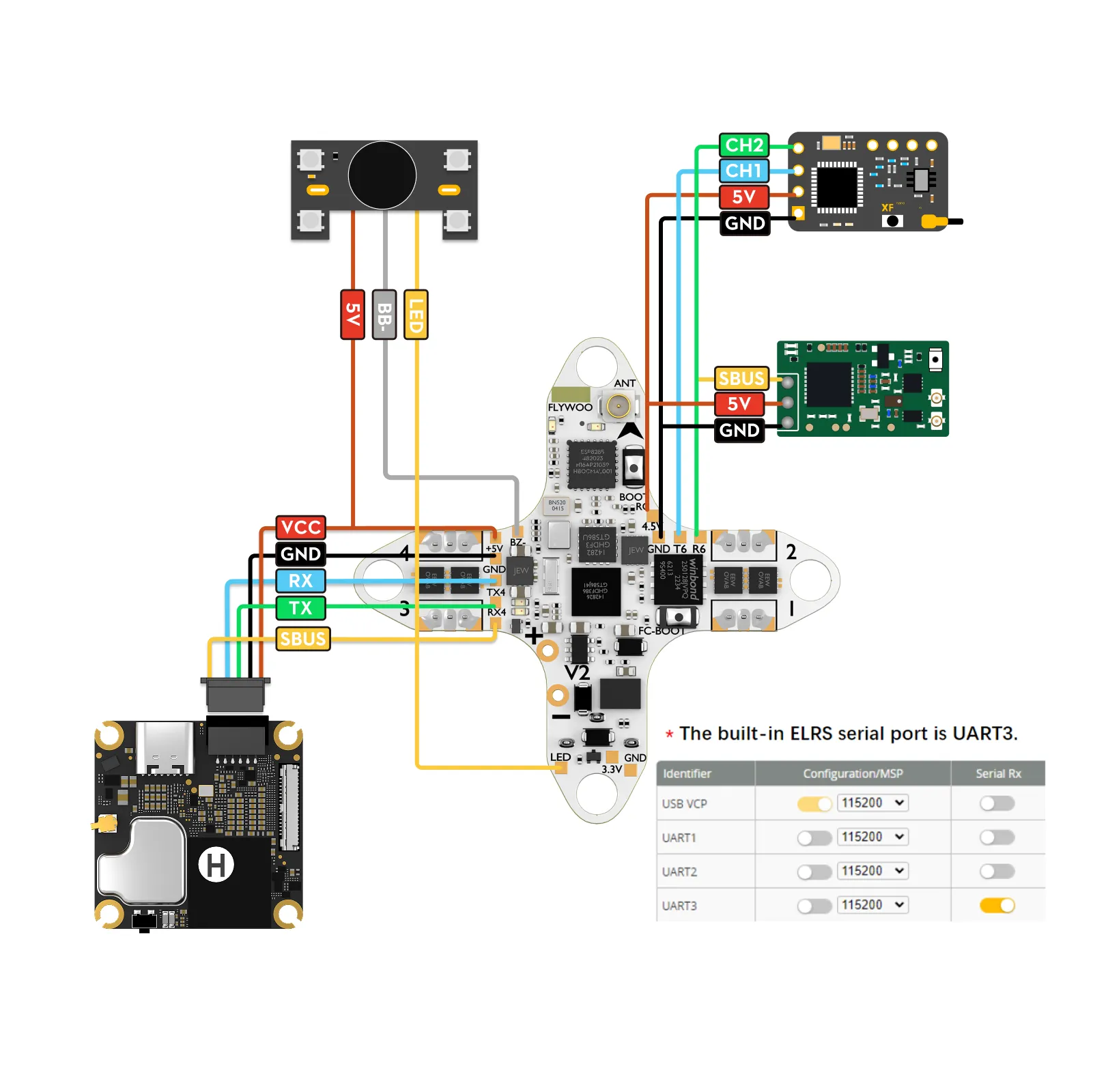

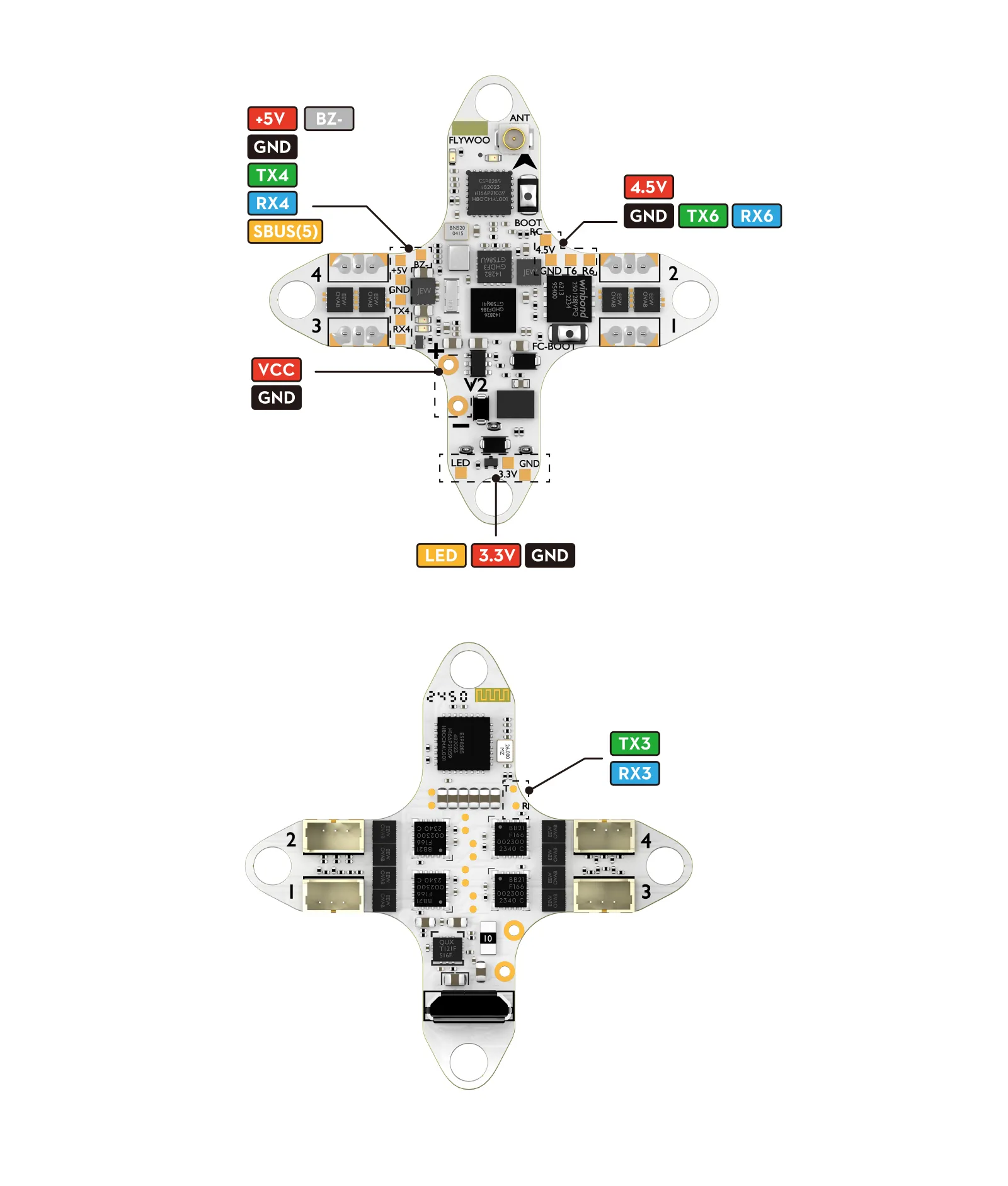

Wiring Diagram:
PACKAGE INCLUDES:
- 1x GOKU F405 HD 1S 5A ELRS AIO V2 (pre-soldered motor connectors)
- 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL–40mm
- 5x M2*6.6 Shock-absorbing ball
- 1x shrink film
- 4x Silica wire (Red/Black)
- 1x A30 Power cable
| Brand |
Flywoo |
|---|---|
| Flight Controller Processor |
F4 |
| Gyro |
ICM42688P |
| Protocol |
ExpressLRS (ELRS) |
| ESC Firmware |
Bluejay |
| Battery Voltage |
1S (3.8V) |
| Video System |
Digital |
