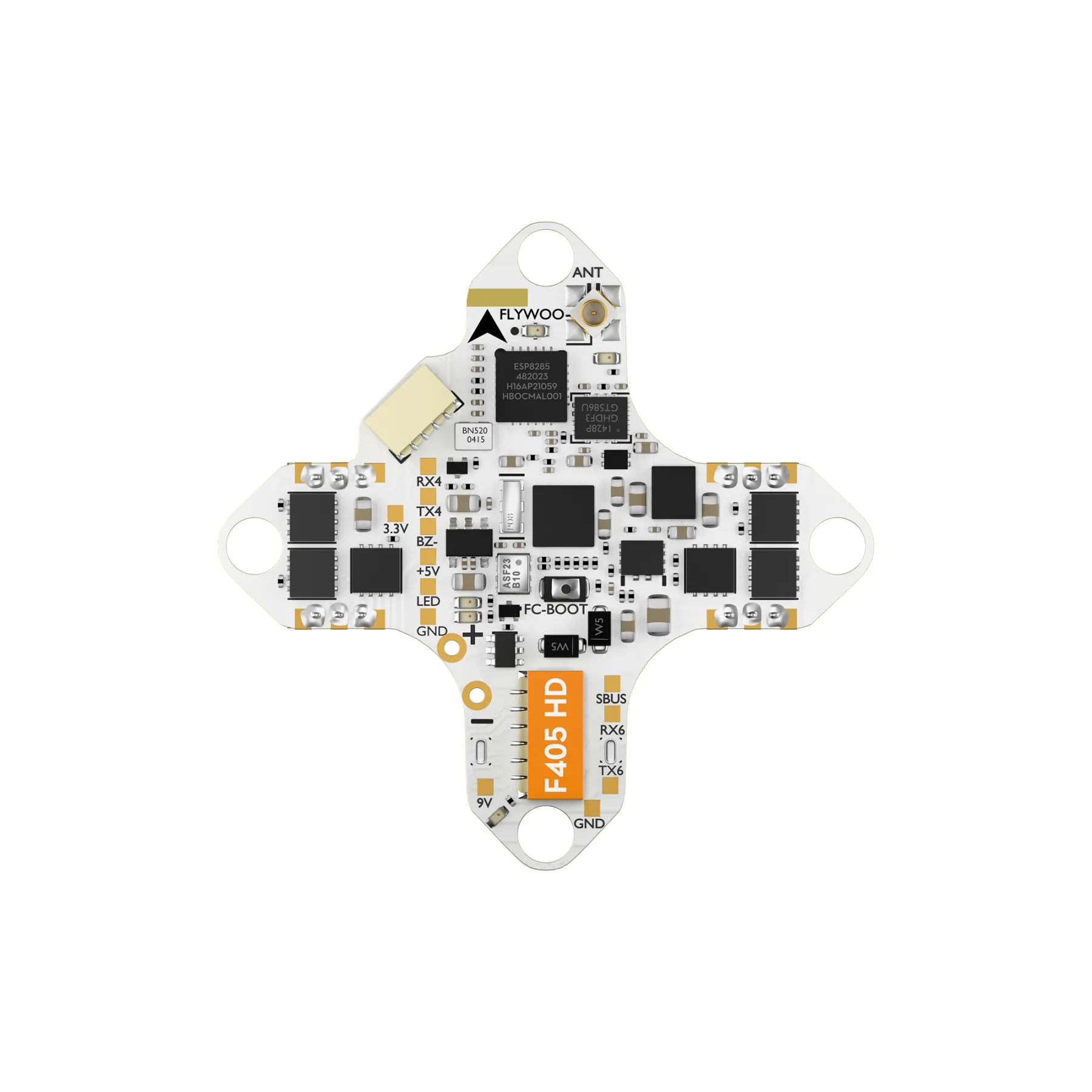

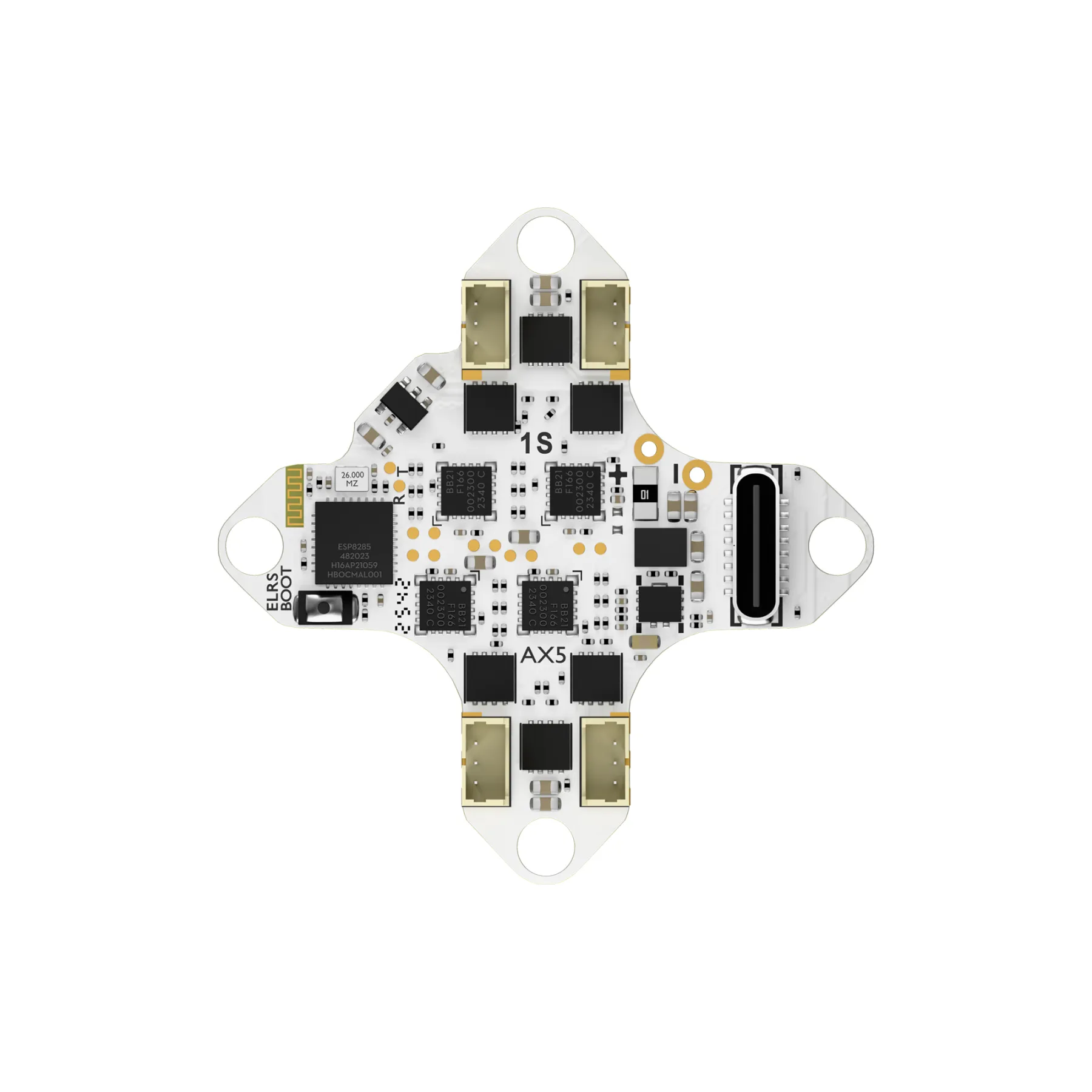

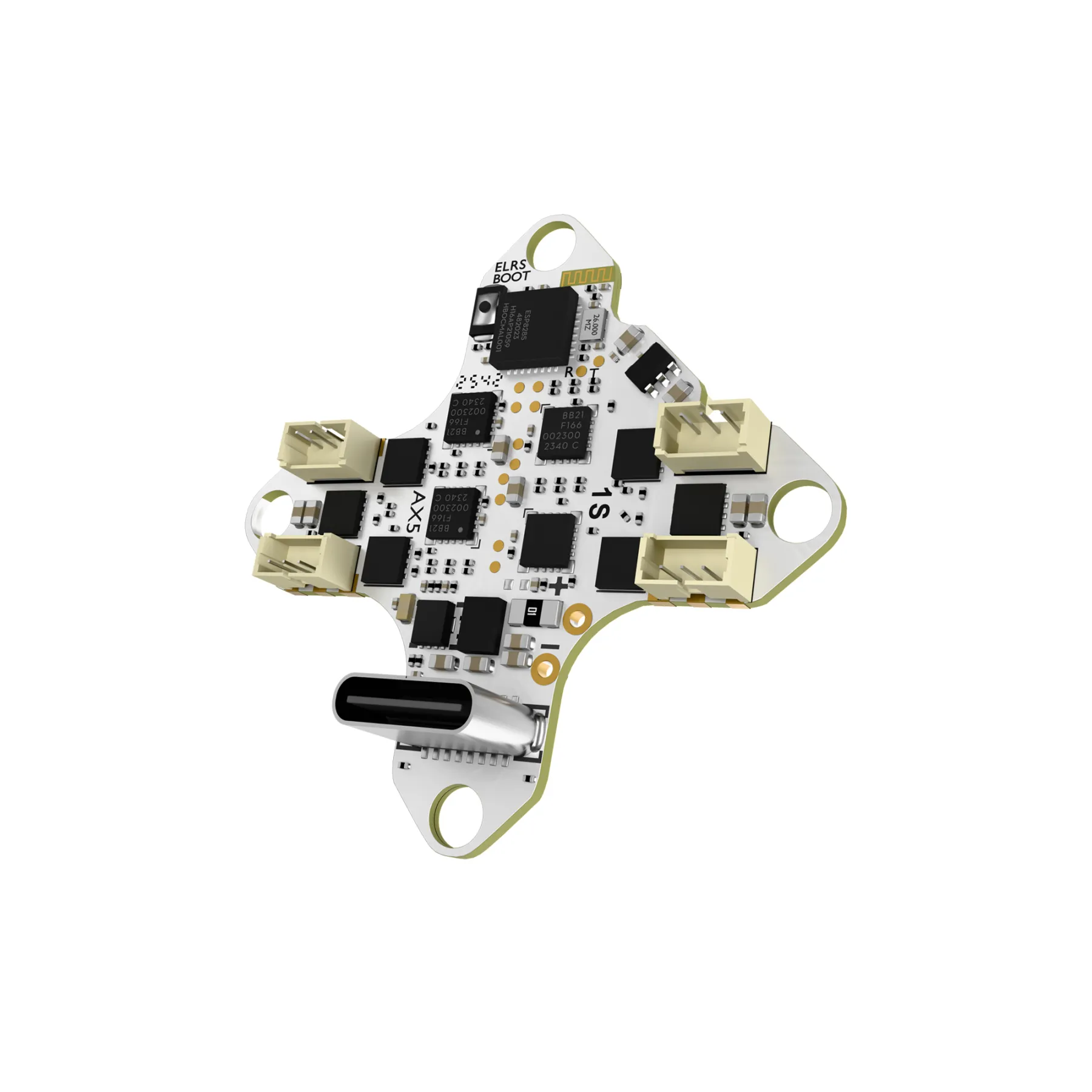

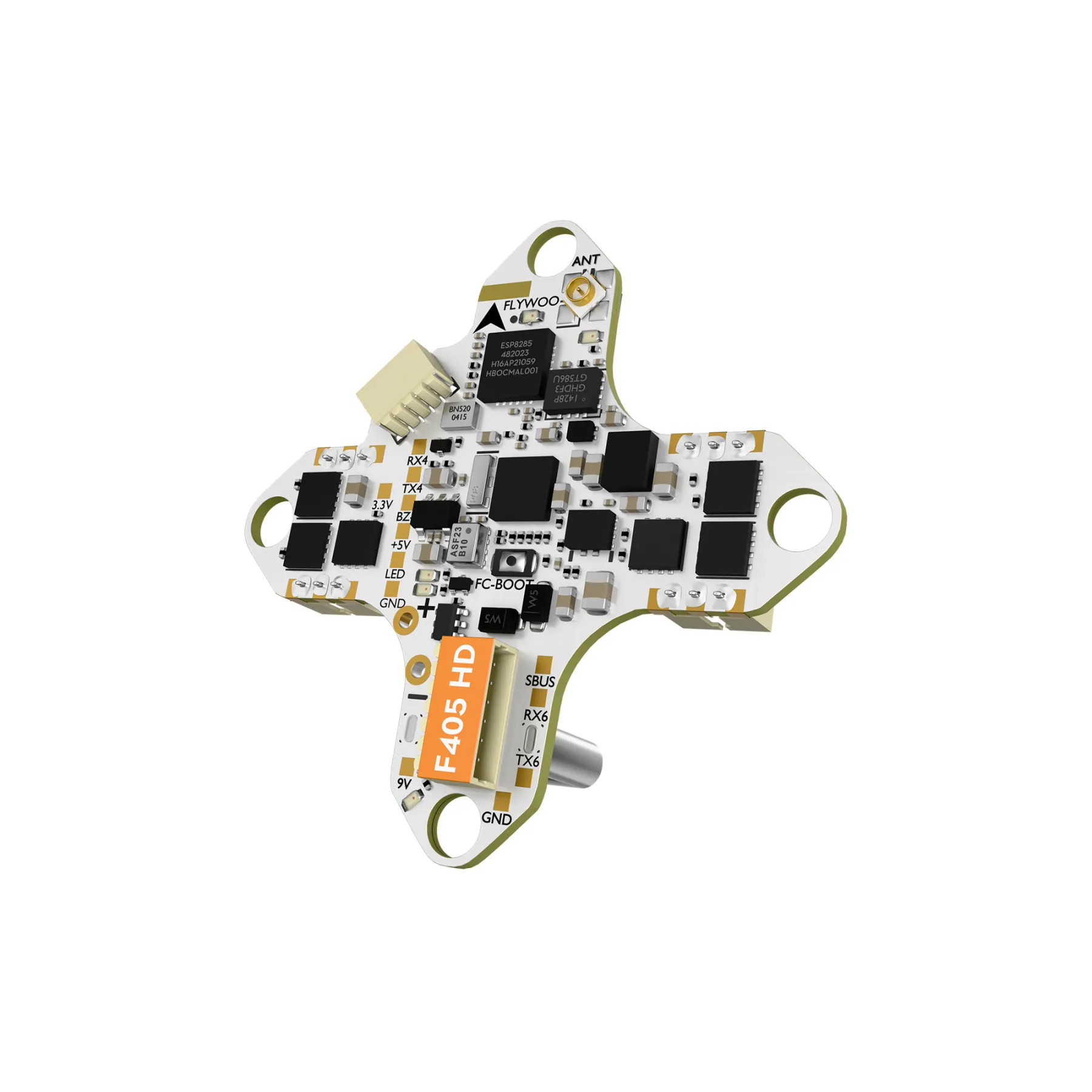

Flywoo GOKU F405 HD 1S 12A AIO Plug&Play O4 / O4 Pro
₹7,495.00 (Incl. GST)
Only 2 left in stock
Unlike standard 5A boards, this AIO integrates a robust 12A continuous (15A peak) ESC and dual high-efficiency BECs (9V/2A and 5V/3A), ensuring your O4 Air Unit receives consistent power even during aggressive maneuvers. Whether you are building a 40mm Tiny Whoop or a 3-inch long-range toothpick, its plug-and-play design and TCXO ELRS 2.4G receiver offer a seamless, interference-free connection for the most demanding pilots.
FEATURES:
-
Wide Compatibility: Works with 40mm-3inch propeller frames and 0802-1303 micro motors
-
Dual BEC : Built-in 9V/5V dual BEC, providing independent and stable voltage
-
Powerful ESCs: 12A high-spec ESCs optimized for 1S systems, delivering smooth power and fast response
-
Serial ELRS: Integrated serial ELRS 2.4GHz receiver (built-in TCXO crystal oscillator)
-
Solder-Free Assembly: Solder-free motor socket design simplifies the assembly process
-
Convenient Interface: Equipped with USB-C port
-
Powerful MCU : STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
-
Plug and Pay : Supports direct plug-in of O4/O4PRO , no soldering required, stable signal
-

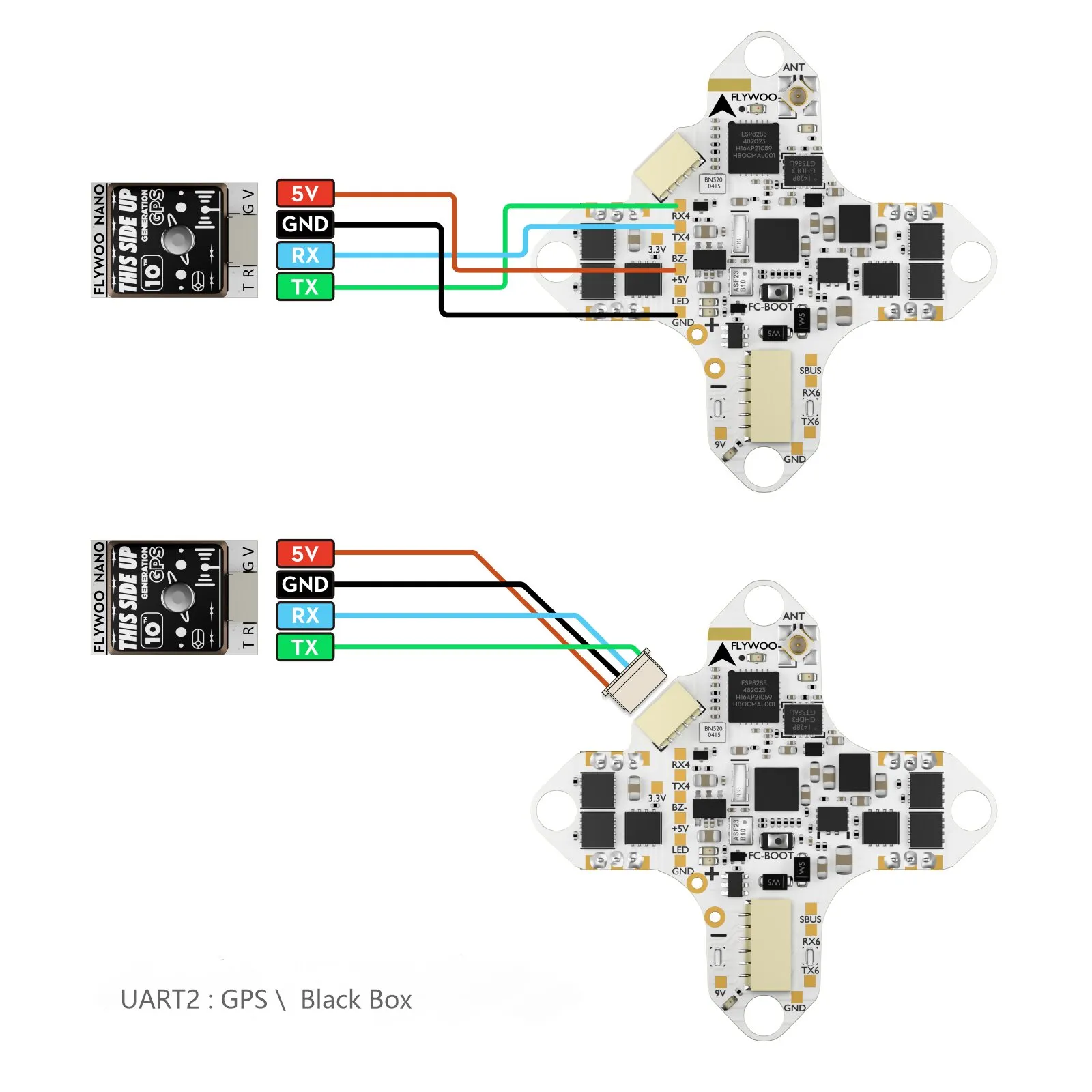

External Black Box or GPS: Supports direact plug in of GOKU GM10 Nano V3 GPS or Flywoo 0.4g OpenLager Nano module with 512MB capacity
SPECIFICATIONS:
|
Product Name
|
GOKU F405 HD 1S 12A AIO
|
| MCU |
STM32F405BGA
|
| IMU |
ICM42688P
|
| Barometer |
SPL06
|
| Black Box |
No （Supports External Black Box ）
|
| OSD Support |
No
|
| UART |
UART2,UART3（For ELRS),UART4,UART5(SBUS),UART6
|
| Protocols |
CRSF, SBUS, iBus, Spektrum
|
| BEC |
5V3A \ 9V2A MAX
|
| RX |
Flywoo TCXO EL24E 2400 RX 3.x.x
|
| BF Firmware |
FLYWOOF405S_AIO
|
| INAV Firmware |
FLYWOOF405HD
|

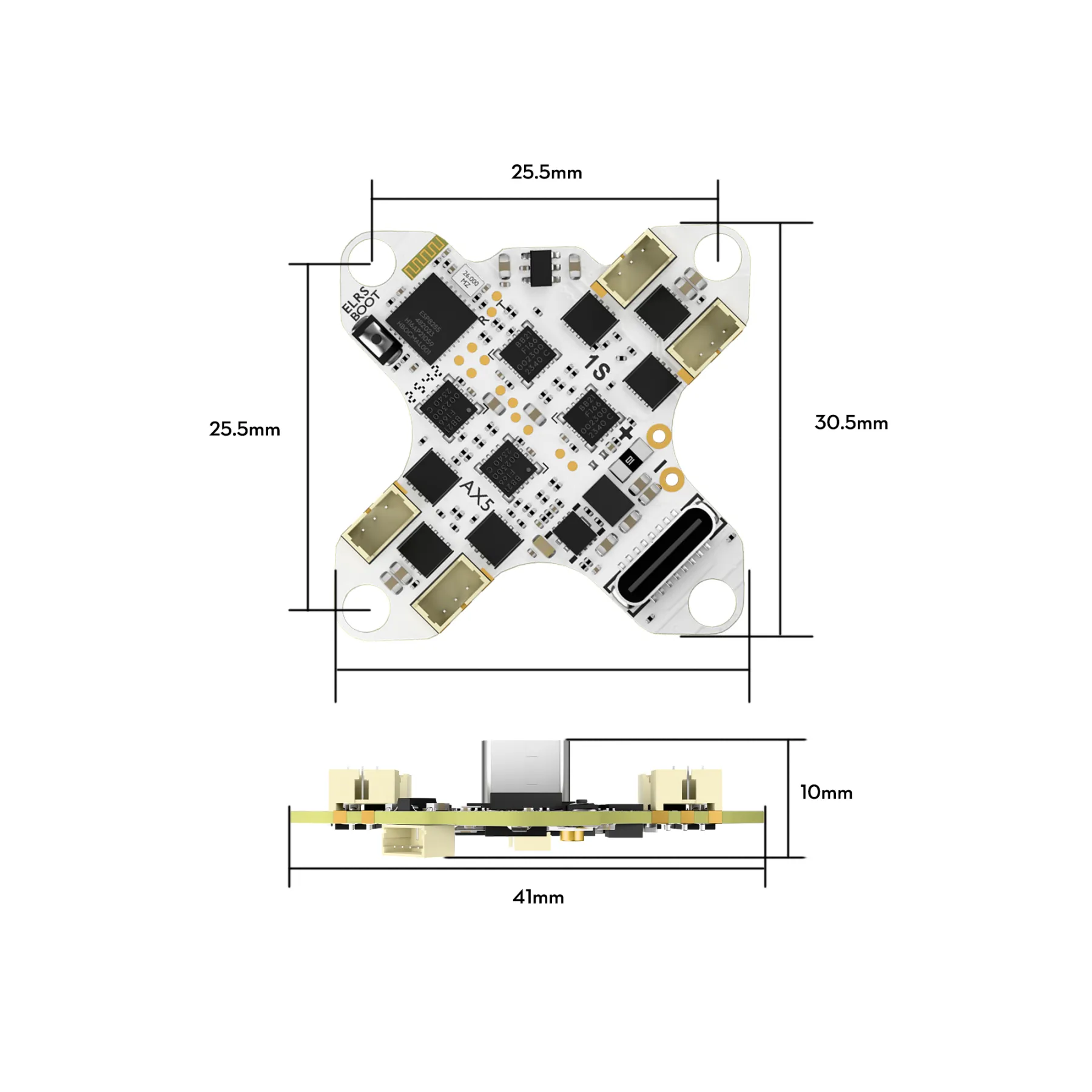

| Dimensions |
30.5*30.5mm*10mm
|
| Mounting Holes |
25.5*25.5mm
|

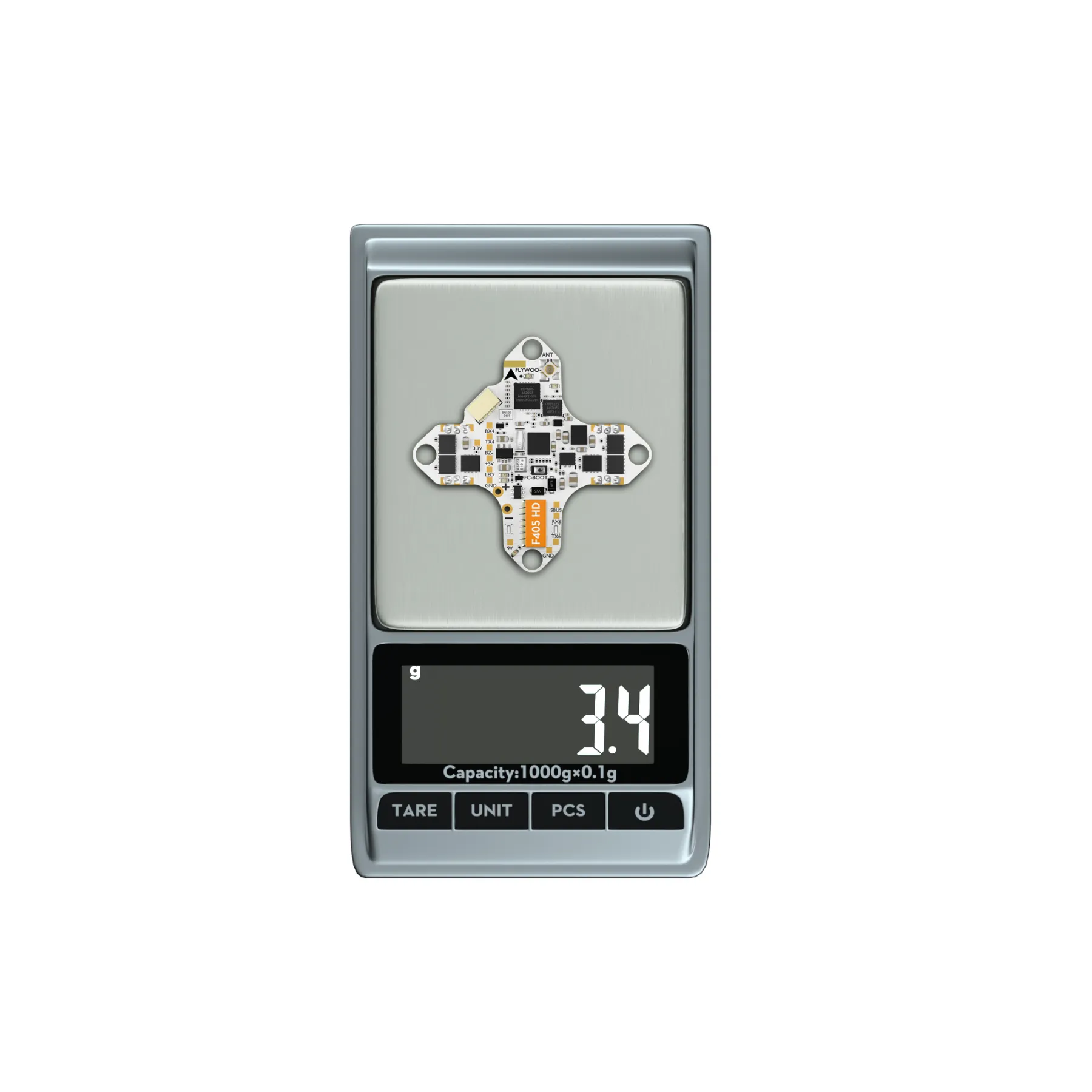

| Weight |
3.4g
|
|
Product Name
|
Onboard 4in1 ESC
|
| Power input |
1S Only
|
| Current |
12A continuous, 15A peak
|
| ESC firmware |
O_H_5_48KHz_V0.19.hex Bluejay firmware
|
| Digital signal protocol |
DShot300, DShot600
|
| Motor Connector |
JST1.25
|
| Battery connector |
A30
|
| Compatibility Category | Compatible Hardware / Protocols |

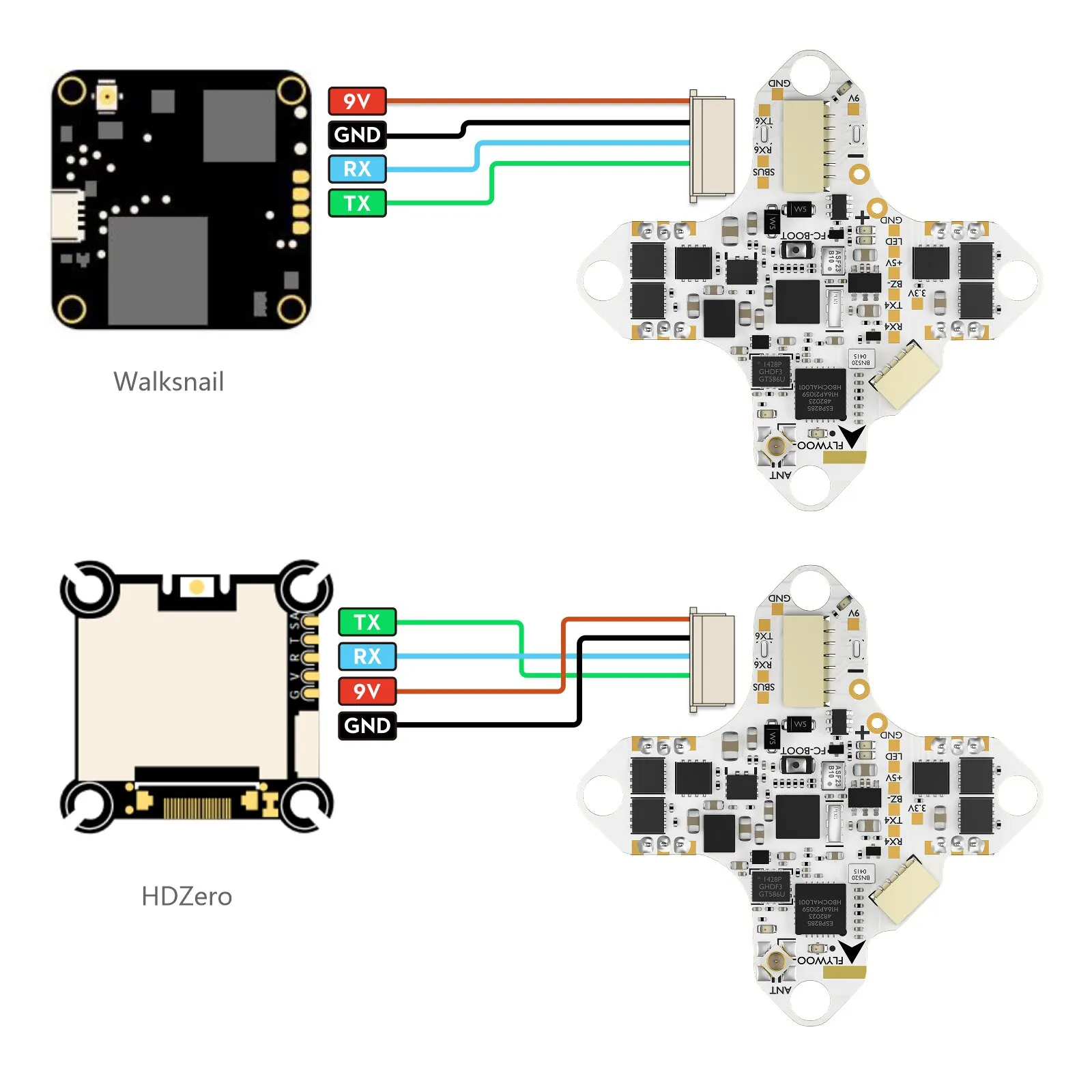

| Digital VTX Systems | DJI O4, O4 Pro, DJI O3 Air Unit, Walksnail Avatar, HDZero |
| Radio Protocols | Integrated TCXO ELRS 2.4G (UART3), SBUS (UART5), CRSF, iBus |
| Frame Sizes | 40mm Whoop, 65mm/75mm Whoop, 2-3 inch Toothpick Frames |
| Battery Connectors | A30 (Standard), compatible with BT2.0 via adapter |
| Firmware Support | Betaflight (FLYWOOF405S_AIO), INAV (FLYWOOF405HD) |

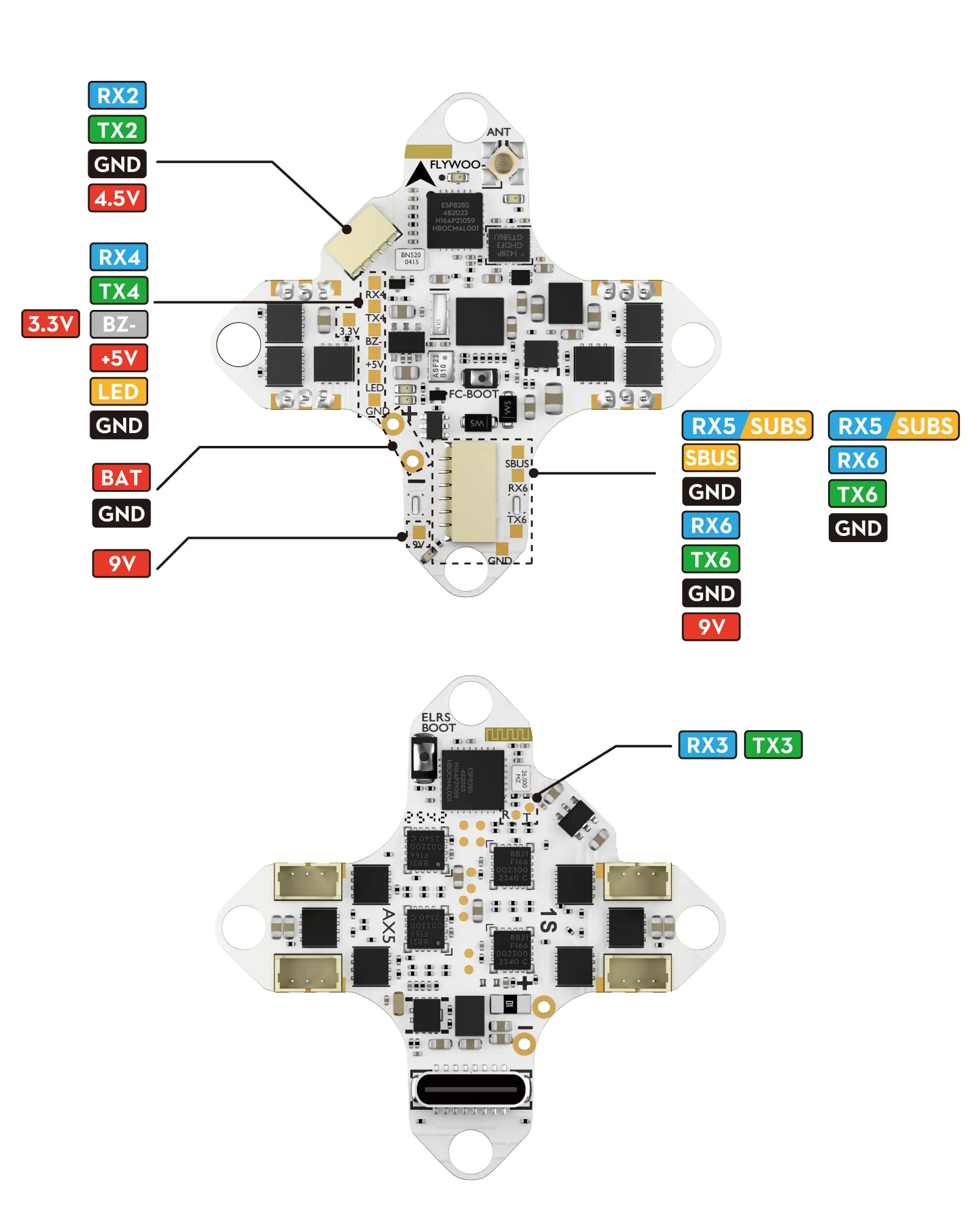

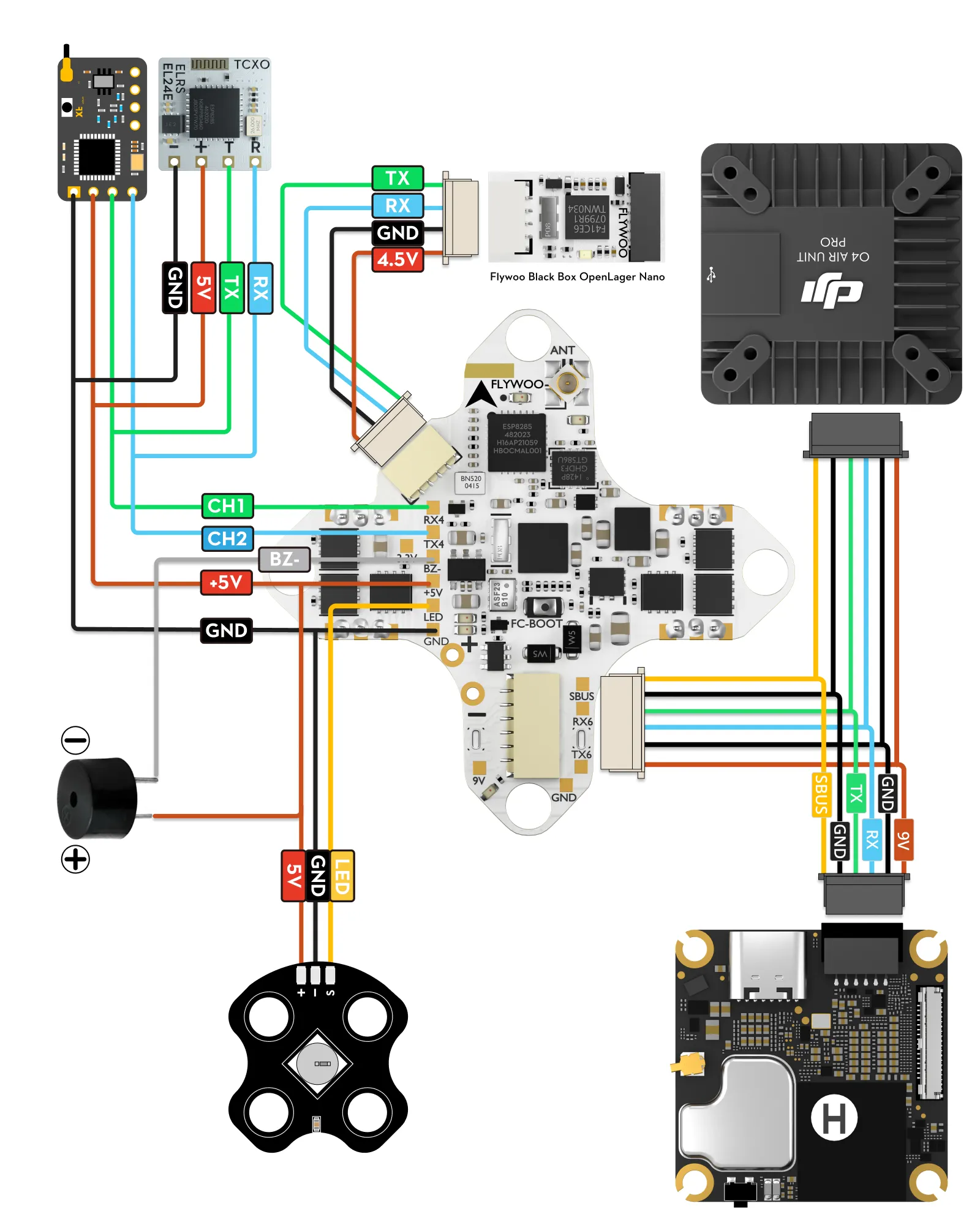

Wiring Diagram:

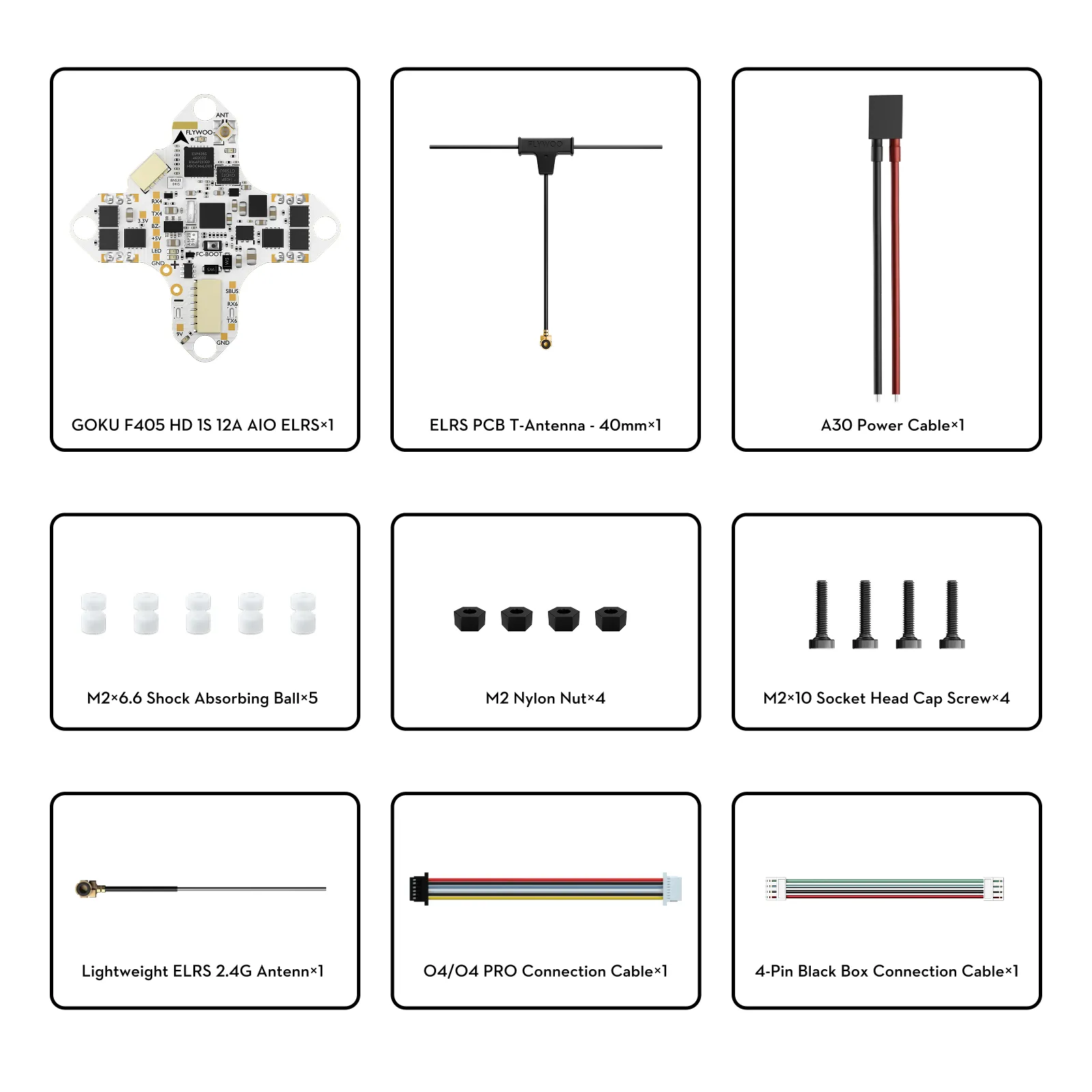

PACKAGE INCLUDES:
- 1x GOKU F405 HD 1S 12A AIO
- 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL–40mm
- 5x M2*6.6 Shock-absorbing ball
- 1x connector cable for flywoo black box / GM10 GPS Nano
- 1x A30 Power cable
- 1 x connector cable for O4 \ O4 Pro
| Weight | 20 g |
|---|---|
| Brand |
Flywoo |
| Flight Controller Processor |
F4 |
| Gyro |
ICM42688P |
| Barometer |
SPL06 |
| ESC Firmware |
Bluejay |
| Protocol |
ExpressLRS (ELRS) |
| Battery Voltage |
1S (3.8V) |
| Video System |
Digital |
Question: |
What motors are recommended for this 12A AIO? |
Ranger |
Answer: |
The 12A ESC supports a wide range of brushless motors from 0802 to 1303, making it ideal for 40mm to 3-inch micro drone frames. |
|
