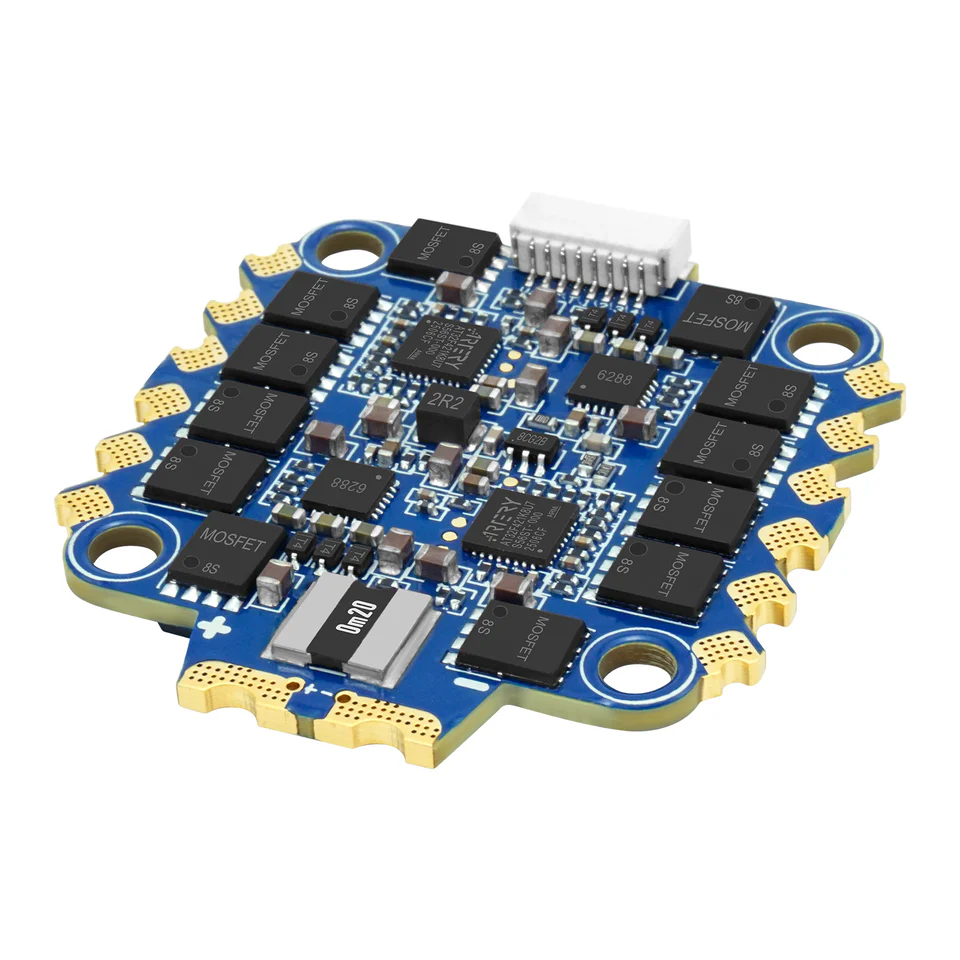

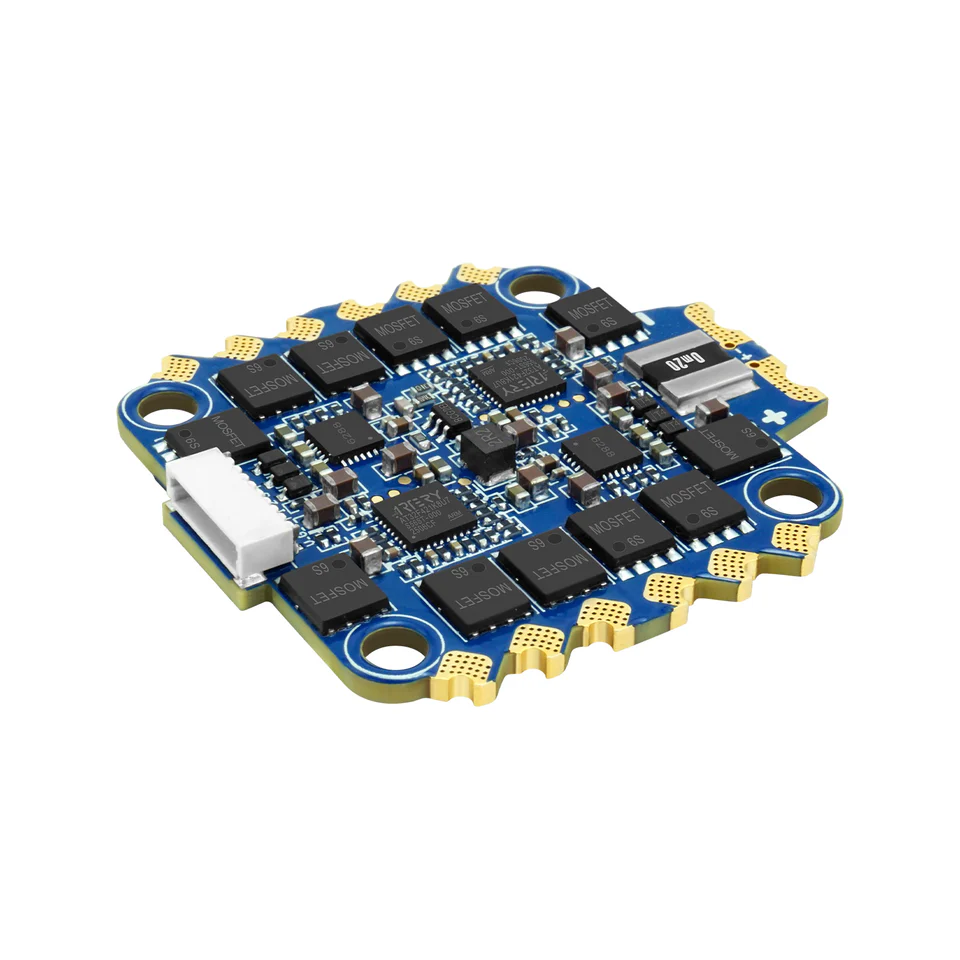

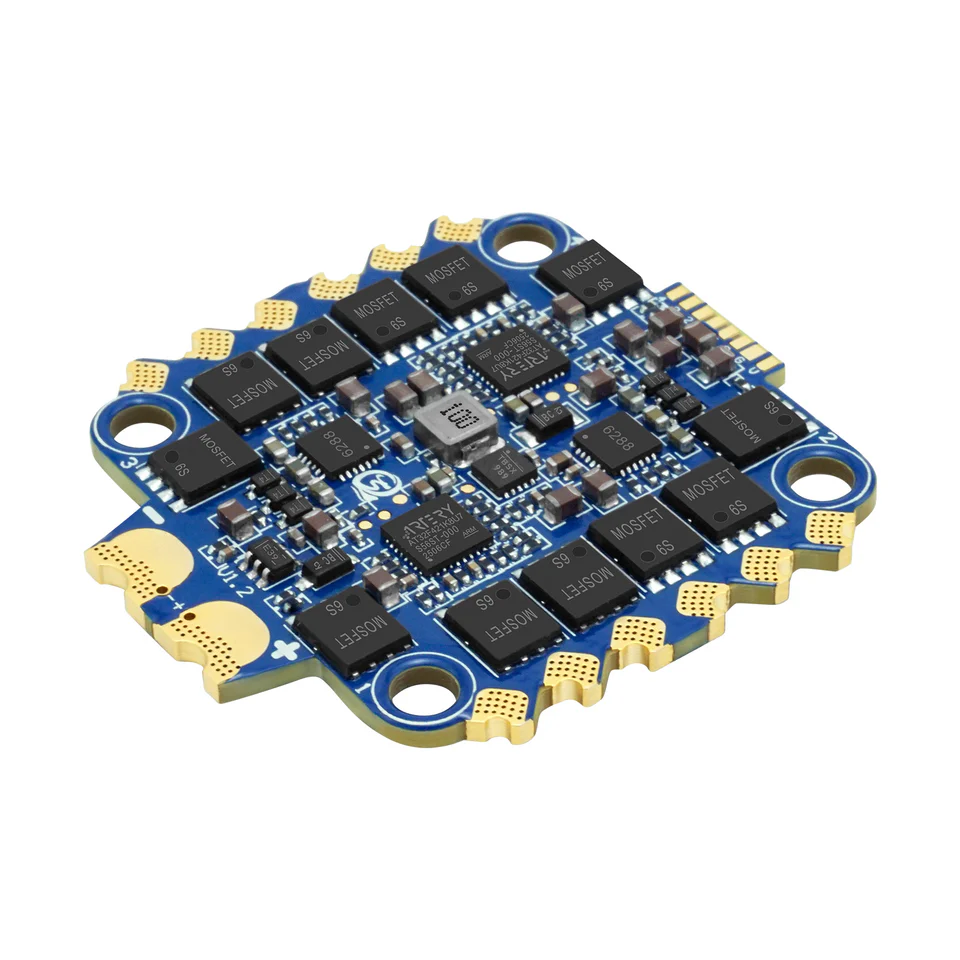

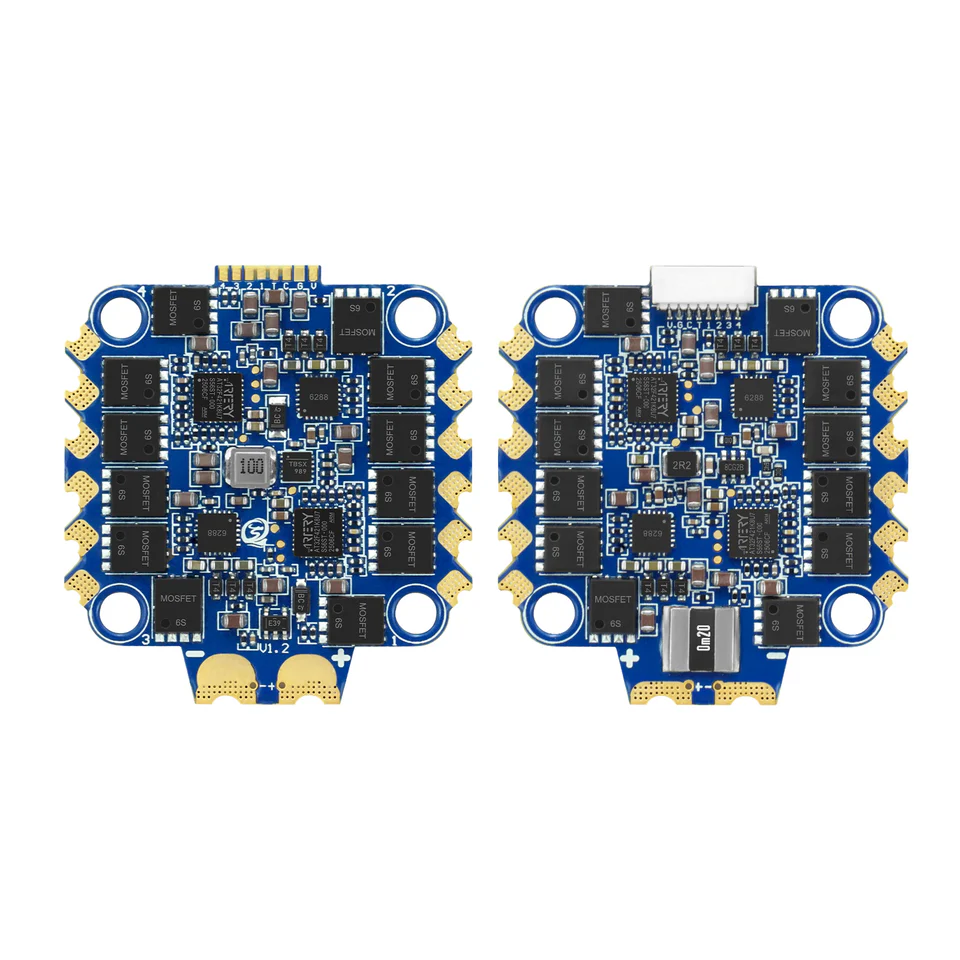

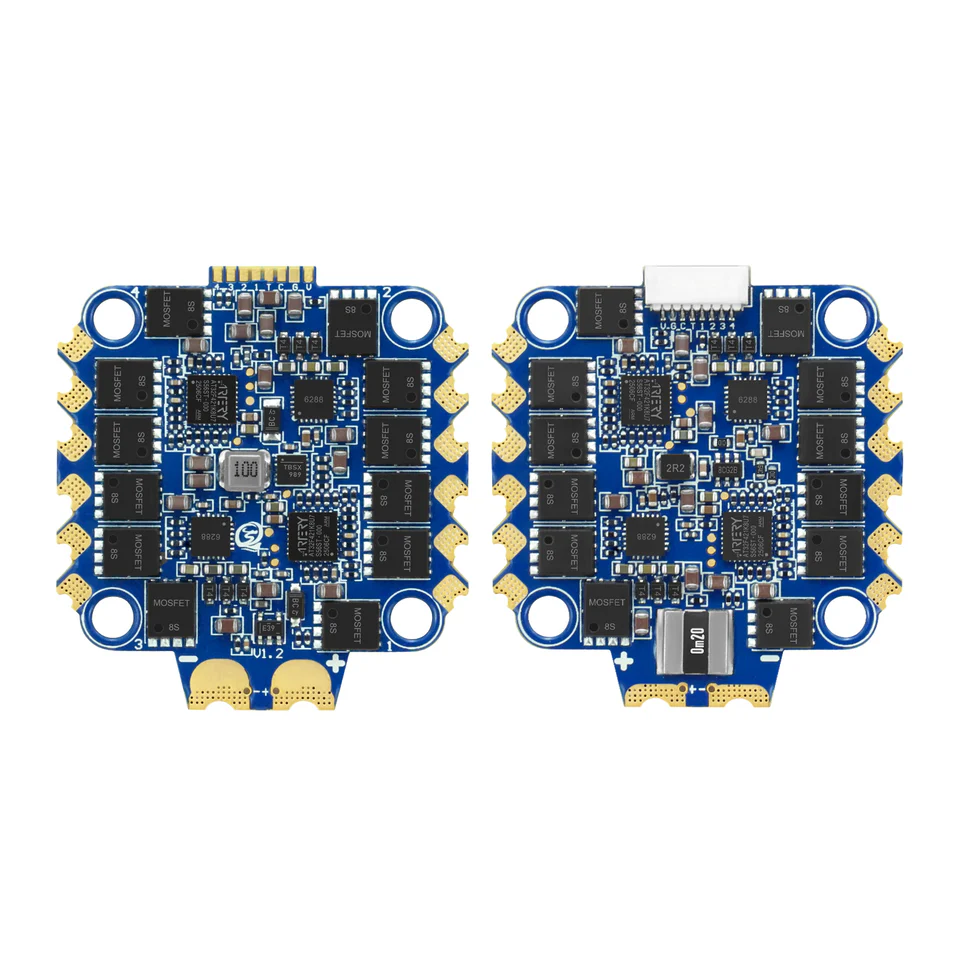

SEQURE Blueson A2 6S 8S 70A ESC with AM32 30×30 4-in-1 ESC
Price range: ₹3,475.00 through ₹4,525.00 (Incl. GST)
FEATURES:
(1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
(2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
(3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
(4) 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.
(5) The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.

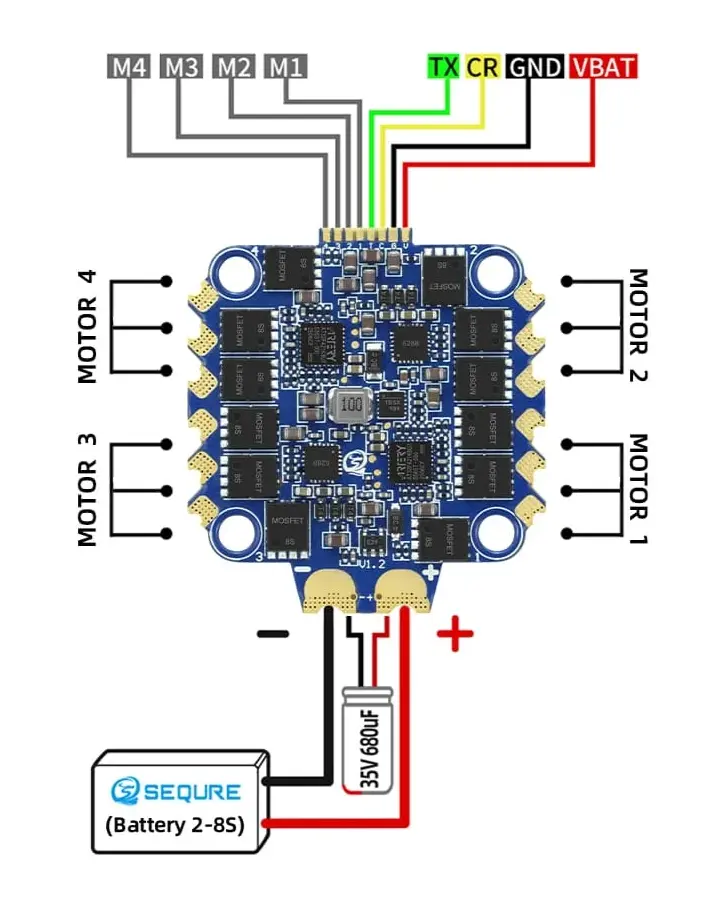

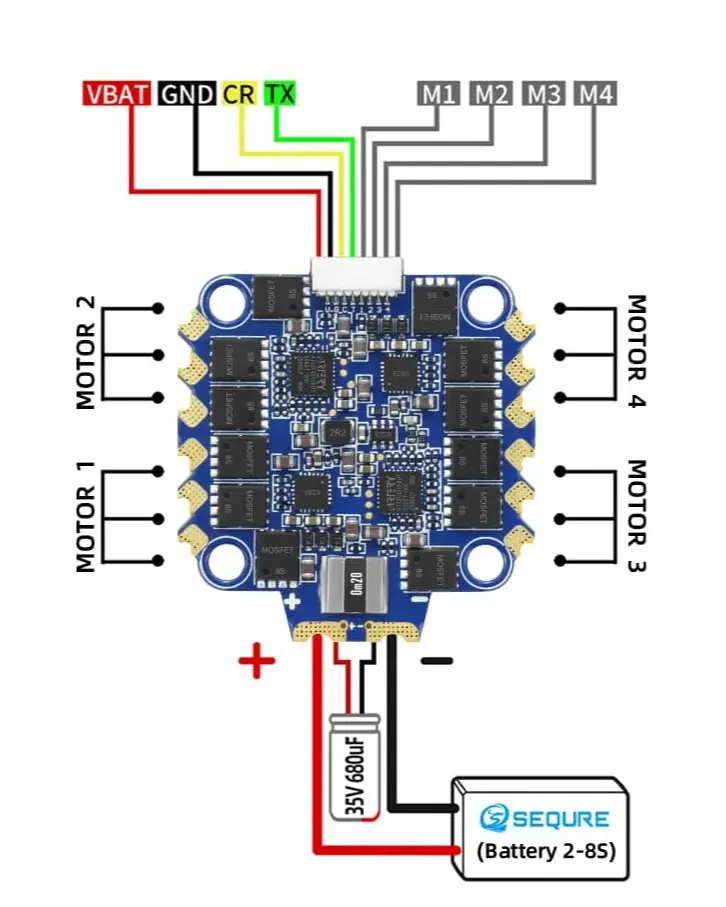

Wiring Diagram:
SPECIFICATIONS:
| Parameter | Specification |
|---|---|
| Model | Blueson A2 |
| Processor | AT32F421 |
| Firmware Version | AM32 / BLHeli_32 |
| PWM Frequency | 8KHz – 128KHz |
| Working Voltage | 2–6S / 2–8S LiPo / LiHV |
| Continuous Current | 65A (6S) / 70A (8S) |
| Peak Current | 120A (6S) / 150A (8S) |
| Supported Protocols | DShot600 / DShot300 / DShot150 / Oneshot / Multishot / PWM |
| Telemetry Return | Yes |
| Current Sensor (Galvanometer) | Yes |
| BEC | No |
| Mounting Hole Spacing | 30.5 × 30.5mm, Φ4mm / M3 |

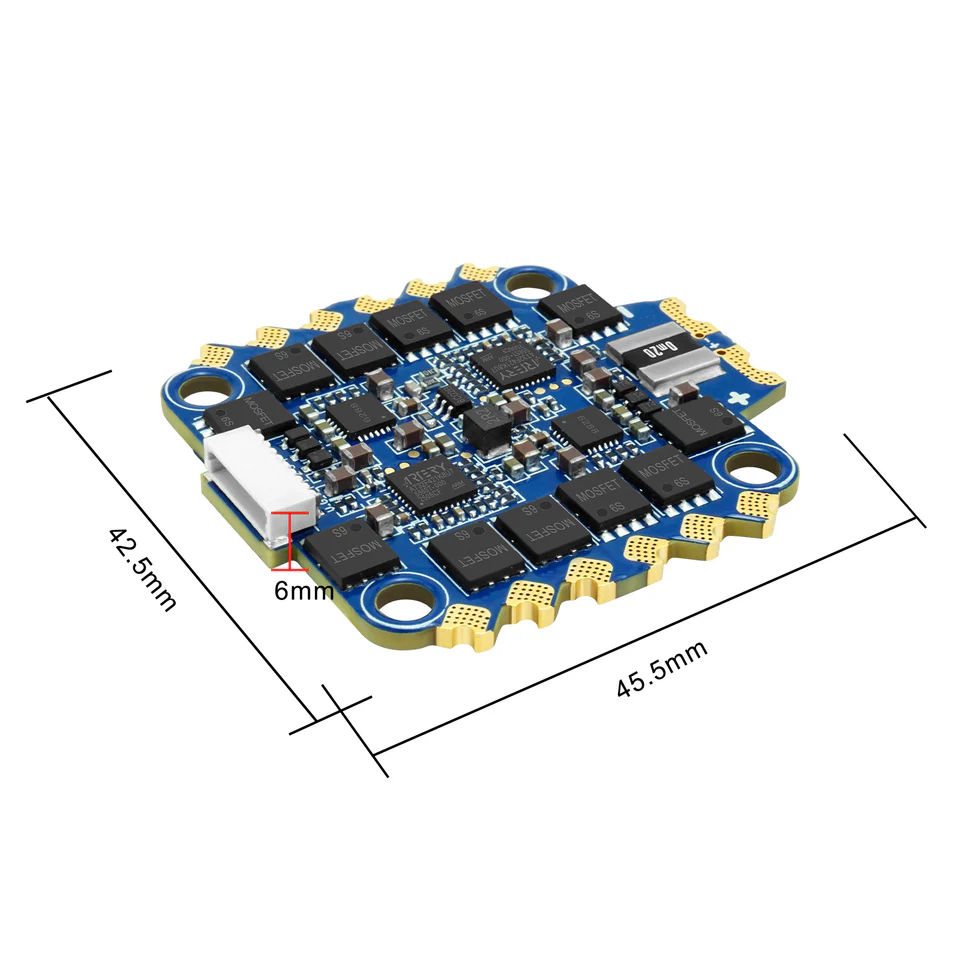

| Product Size | 45.5 × 42.5 × 6mm (L × W × H) |

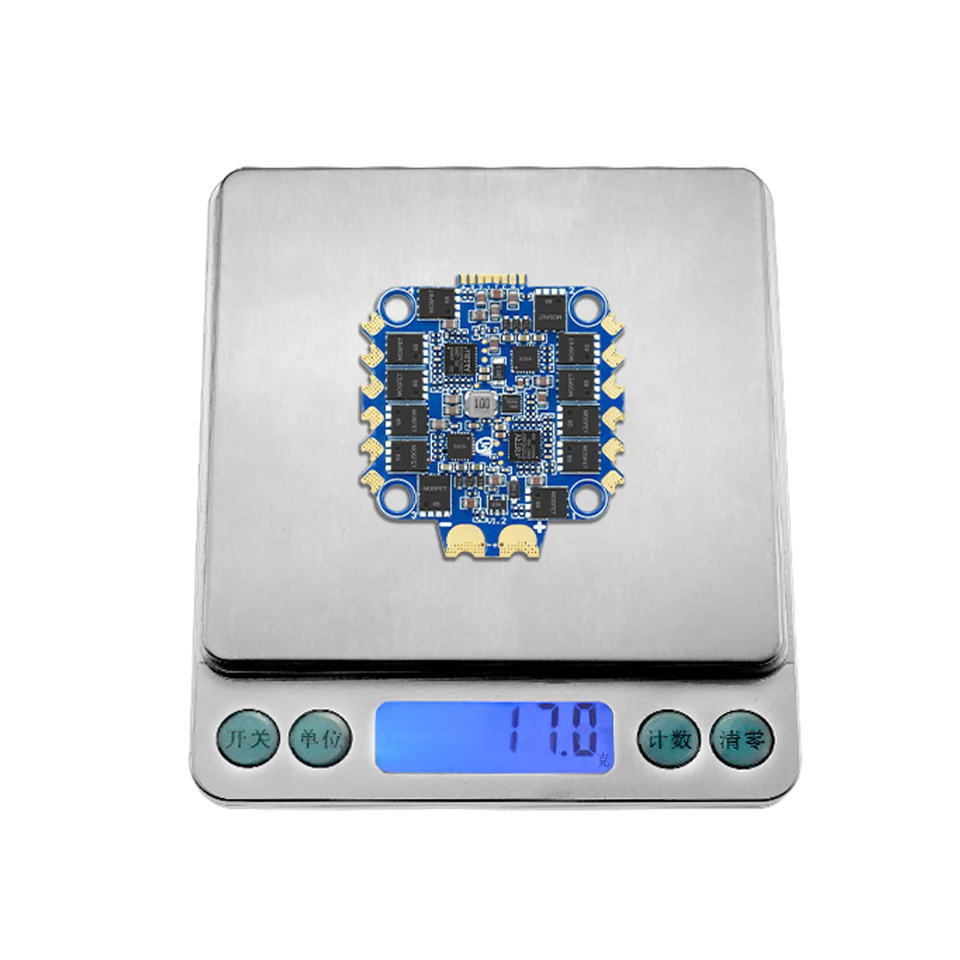

| Product Weight | 17g |
PACKAGE INCLUDES:
- 1x SEQURE Blueson A2 4IN1 ESC
- 1x 30AWG 40mm reverse double plug SH1.0-8P cable
- 1x 30AWG 60mm single plug SH1.0-8P cable
- 2x 12AWG 100mm power cable (black/red)
- 1x XT60H-M black male connector
- 1x 35V 680UF solid capacitor
- 5x M3*8mm shock absorbing washer (black)
| Weight | 25 g |
|---|---|
| ESC |
BLUESON A2 (6S 65A AM32) ,BLUESON A2 (8S 70A AM32) |
| ESC Firmware |
AM_32 |
