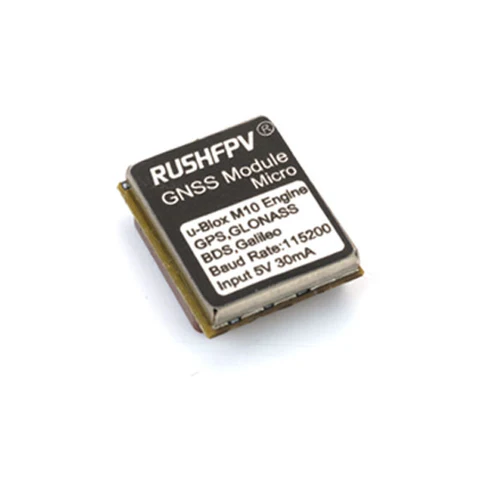

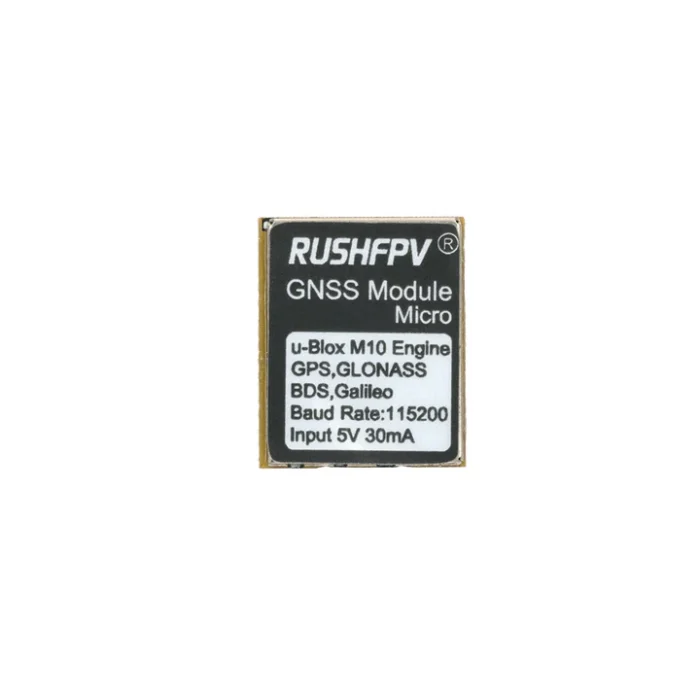

The RushFPV M10 GPS GNSS Micro is an ultra compact GPS module that uses the new uBlox M10 chipset. The uBlox M10 supports GPS, BDS, GLONASS and GALILEO GPS systems and connect to three of them simultaneously. The module features a built in backup battery and supports fast hot-start. Toward the Sky! With an even smaller GPS module from RUSHFPV! Micro M10 GPS Small enough to fit on almost any drone, but with updated engines & more power!.
FEATURES:
- Compact design for small FPV drones
- New uBlox M10 engine supports many different navigation systems
- Link up to 3x navigation systems with 10Hz refresh rate
- Built-in Backup battery & memory support fast hot start
- Antenna has anti-fouling coating & the circuit is sealed for a more durable reliable GPS system

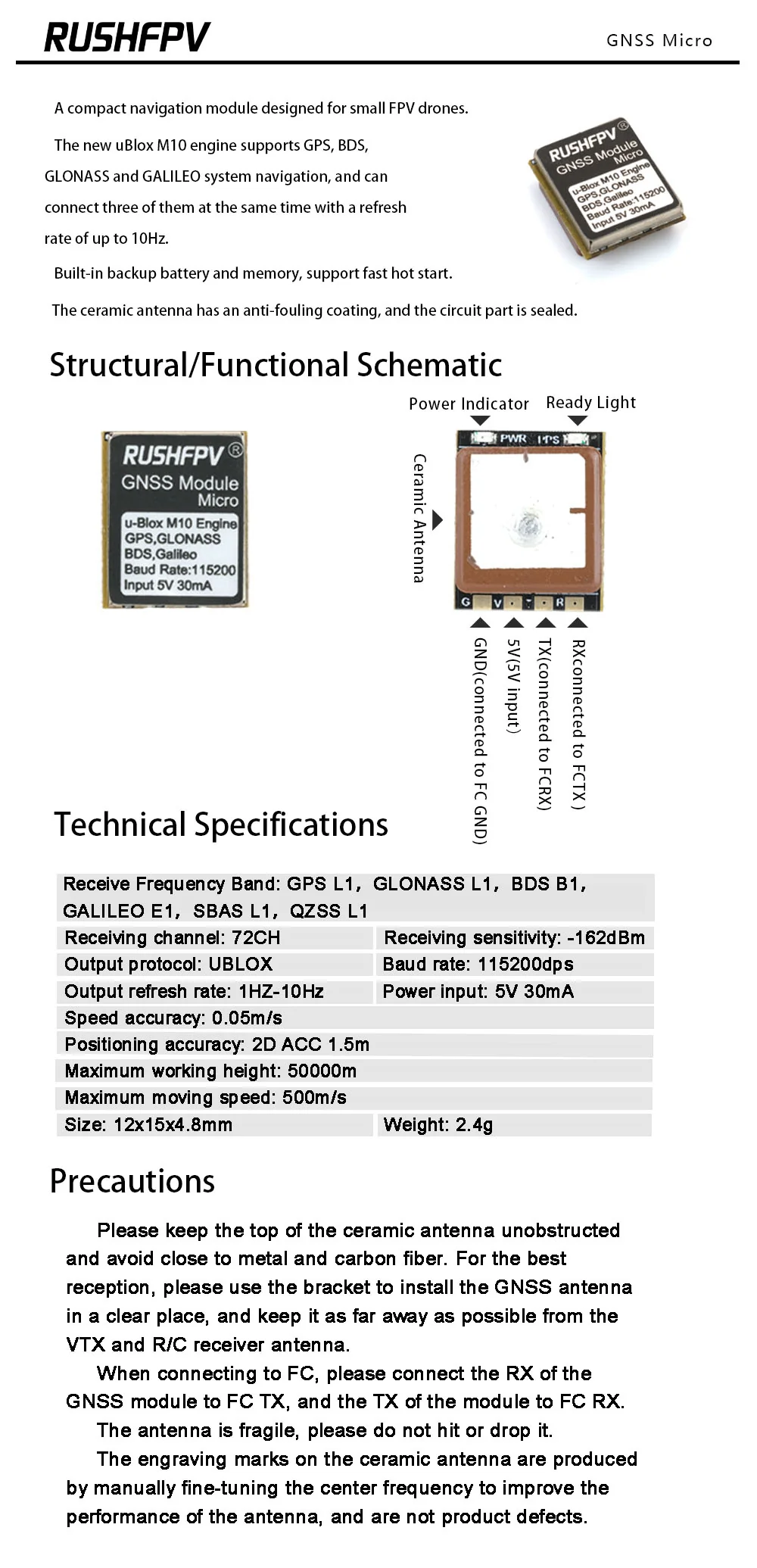

SPECIFICATIONS:
- Recieve Frequency Band: GPSL1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
- Receiving channel: 72CH
- Receiving sensitivity: -162dBm
- Output protocol: UBLOX
- Output refresh rate: 1HZ-10Hz
- Baud rate: 115200dps
- Power input: 5V 30mA
- Speed accuracy: 0.05m/s
- Positioning accuracy: 2D ACC 1.5m
- Maximum working height: 50000m
- Maximum moving speed: 500m/s
- Size: 12 x 15 x 4.8mm
- Weight: 2.4g
PACKAGE INCLUDES:
- 1x GNSS Micro M10 GPS
