GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna (SMA Male)

SPECIFICATIONS:

• Center frequency: 5.8 GHz
• Bandwidth: 660 MHZ (5.47-6.13ghz)
• Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
• Axial ratio: < 1.3
• DBi antenna gain: 9.4
• Half power beam width: 55 ° (horizontal and vertical)
• Radiation efficiency: 83.5%
• These values are based on simulation and the actual measurements are as follows (they are very similar).
• Due to the change of the FR4 dielectric constant, the center frequency may be transferred between batches.
• And not all FR4 brands have the same dielectric constant.
• The frequency conversion to 100 MHz is normal.

PACKAGE INCLUDES:

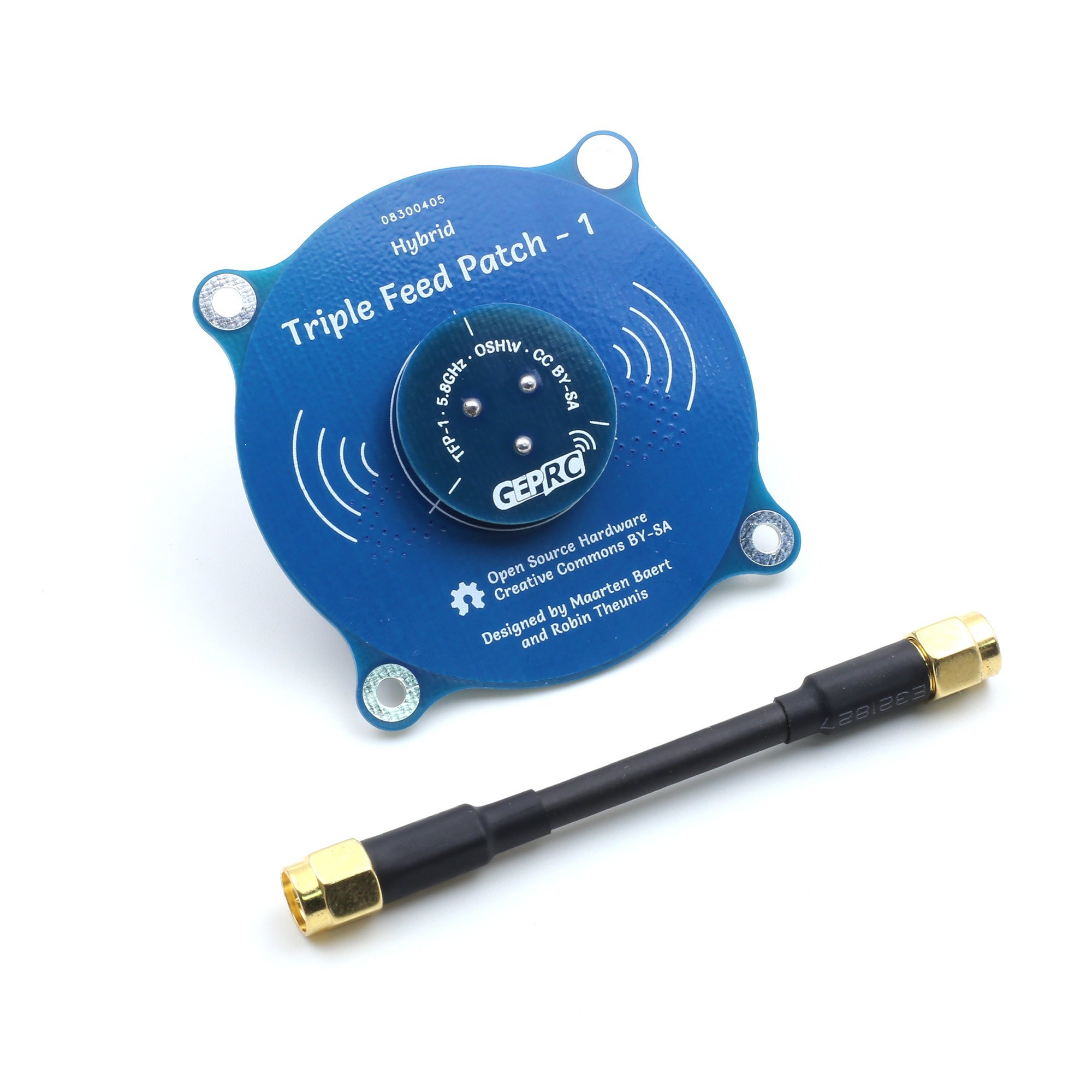

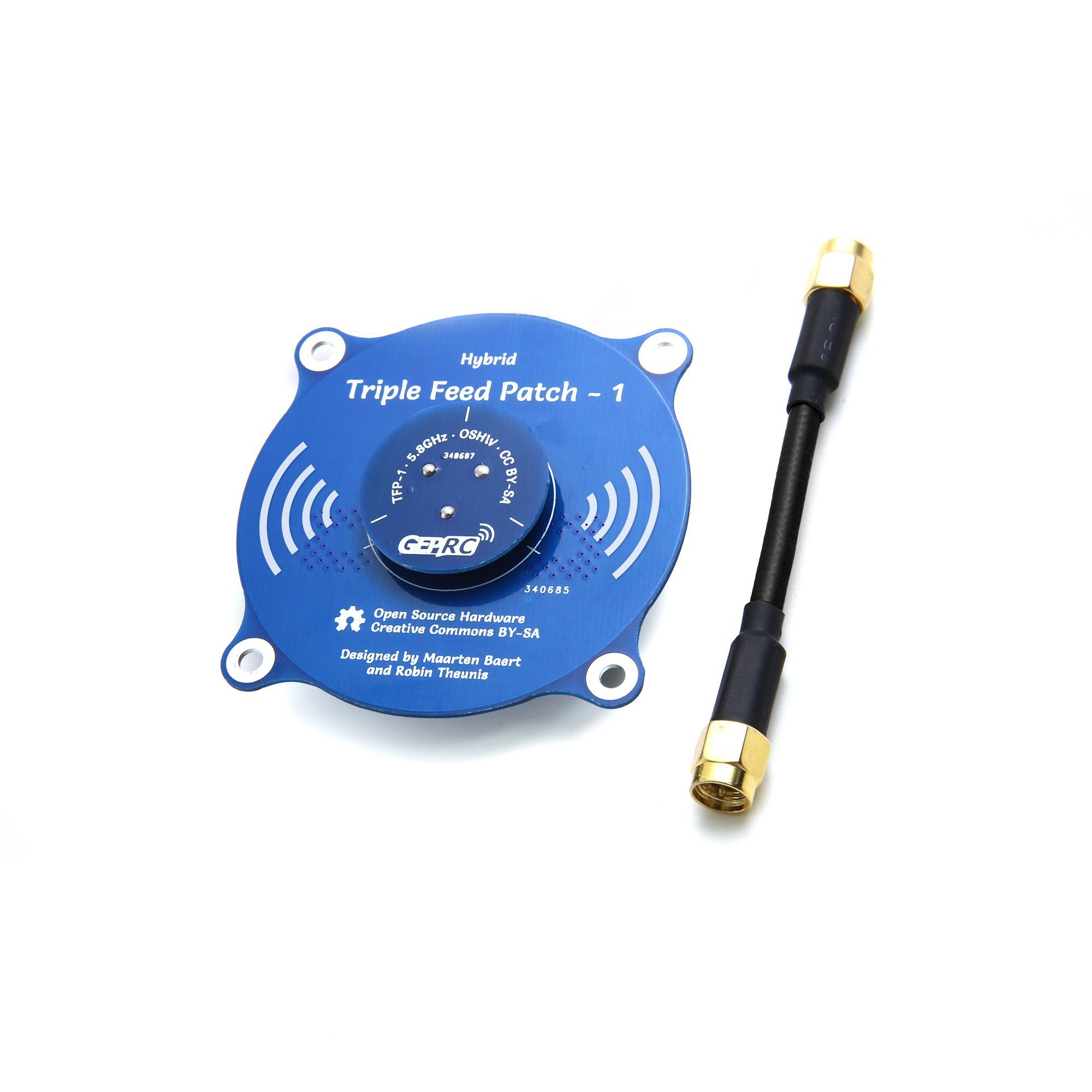

• 1 x GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna (SMA Male) with Carry Case
