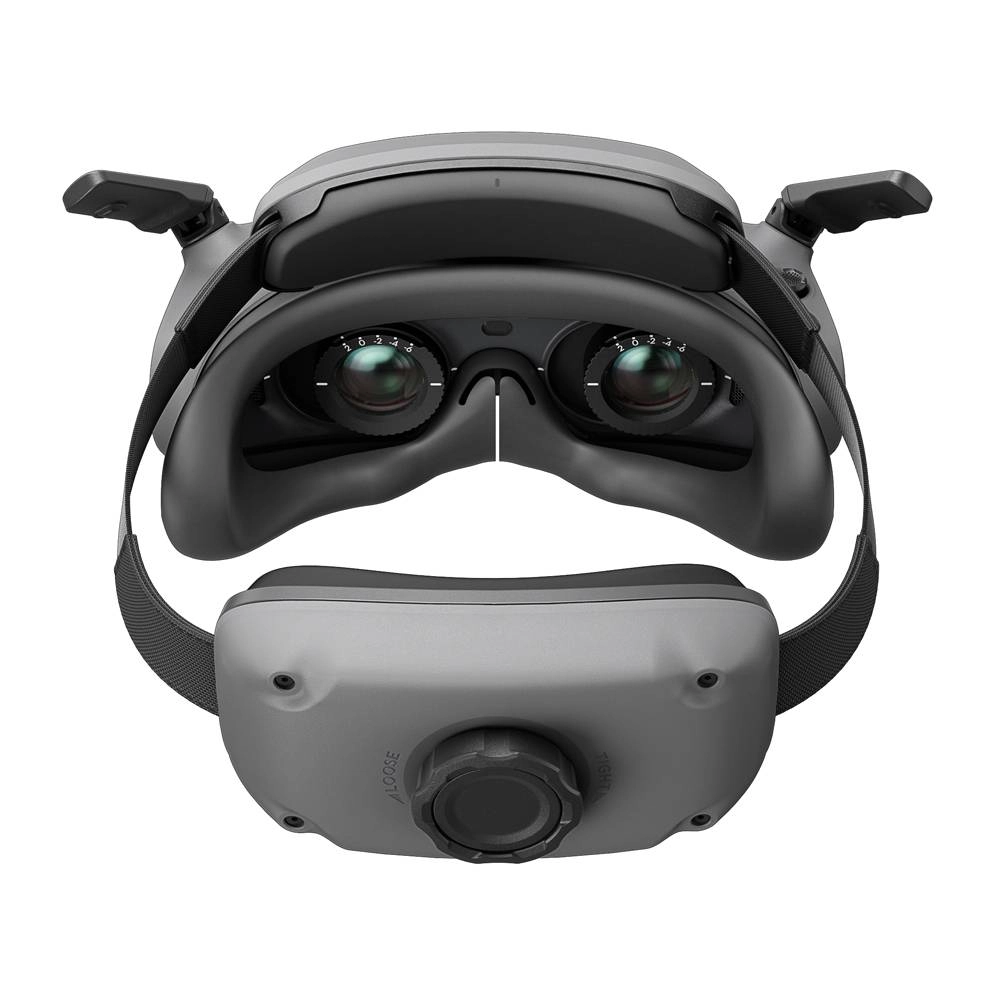

The DJI Goggles 3 feature Real View PiP (Picture-in-Picture), allowing you to observe your surroundings without removing the goggles for enhanced safety and immersion. With its micro-OLED high-definition display and ultra-low-latency transmission, the world comes into view with stunning clarity.
Download DJI Assistant 2 (Consumer Drones Series) for firmware upgrade.
Features
- DJI O4 compatible – DJI O3 Compatibility is now available via firmware update!
- Ultra-Low Latency Transmission
- Real-View Picture-In-Picture
- Micro-OLED HD Display
- DJI Goggles 3
O4 Video Transmission, Compatible with Air 3 and Mini 4 Pro
With Avata 2, O4 video transmission delivers ultra-low latency at 24 ms and a high bitrate of 60Mbps. Also compatible with Air 3 and Mini 4 Pro, the reliable O4 HD transmission offers crystal-clear and fluid first-person views.
Real View PiP, Safety in Sight
You can conveniently observe your surroundings without removing your goggles to get enhanced flight safety.
All-Around Comfort and Convenience
Dazzling Upgrades: Enjoy a 1080p micro-OLED screen with a refresh rate of up to 100 Hz*, alongside the TüV Rheinland Low Blue Light Certification. Accommodates diopter adjustments from -6.0 D to +2.0 D for nearsighted and farsighted users.

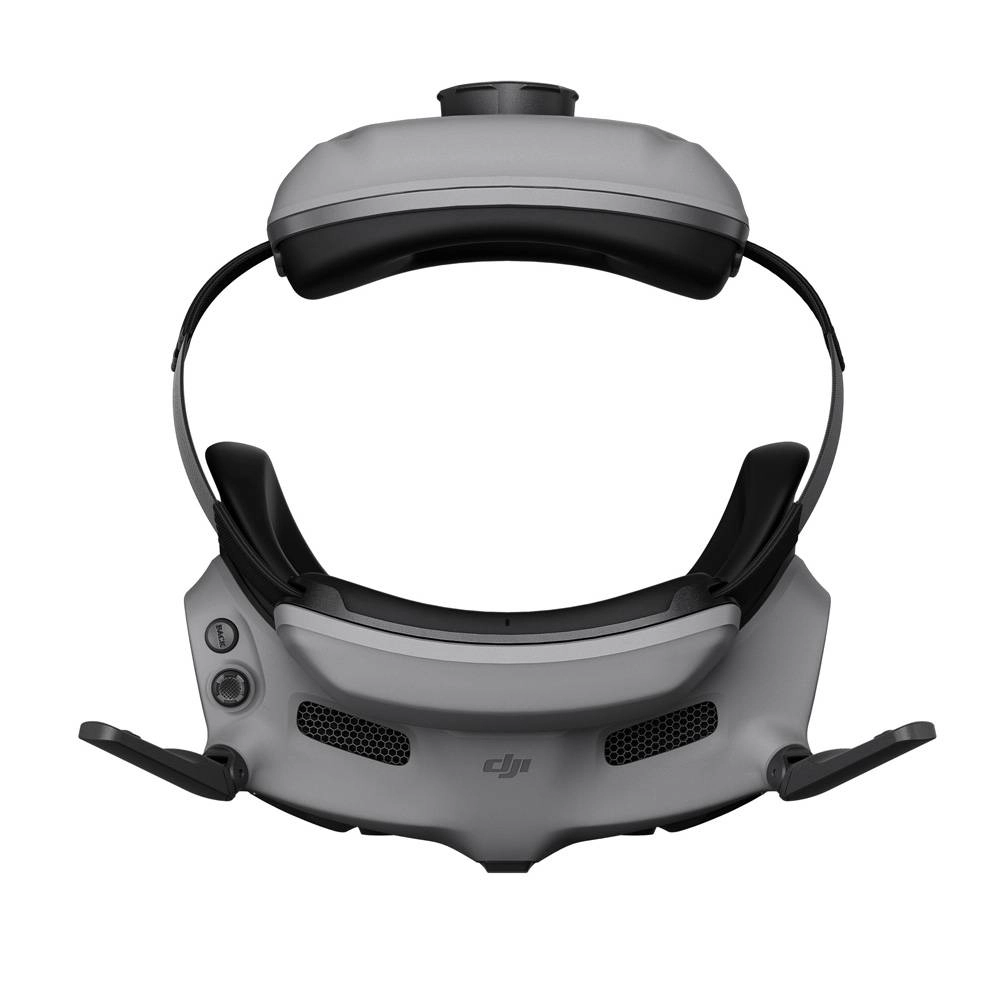

Battery and Headband Integration: The lightweight, comfortable design that integrates the headband liberates you from tangled cables and offers a lengthy 3-hour operating time.**
One-Tap Defogging: With defogging enabled, you get a convenient solution for sudden changes in temperature or high-humidity conditions.
More Fun with Wireless Streaming
Stream your flight in real-time on the DJI Fly app of your smartphone via Wi-Fi connection.***
You can also import panoramic and 3D videos onto an SD card and play them back using Goggles 3 for an immersive experience that seems almost within reach.
Specifications
GOGGLES
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Supported SD Cards: microSD (up to 512 GB)
- Diopter Adjustment Range: -6.0 D to +2.0 D
- Weight: Approx. 470 g (battery included)
- Resolution (single screen): 1920×1080
- Screen Size (single screen): 0.49 inch
- Video Recording Format: MOV
- Power Input: Built-in battery
- Refresh Rate: Up to 100 Hz
- FOV (single screen): 44°
- Real View FOV: 44°
- Model: TKGS3
- Supported Video and Audio Playback Formats
- 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)
- Panoramic Video: Spherical 2D panoramic videos
- Video coding formats: H.264, H.265
- Max Video Specification: 4K/60fps
- Audio formats: AAC, PCM
- Dimensions (L×W×H)
- With antennas folded: 170×109×112 mm (L×W×H)
- With antennas unfolded: 205×109×112 mm (L×W×H)
- Interpupillary Distance Range: 56-72 mm
VIDEO TRANSMISSION
- Max Transmisssion Distance:13 km (FCC); 10 km (CE/SRRC/MIC)
- Max Video Bitrate: 60 Mbps
- Latency with DJI Avata 2:
- 1080p/100fps video transmission quality: latency down to 24 ms
- 1080p/60fps video transmission quality: latency down to 40 ms
- Transmitter Power (EIRP): 2.4 GHz
- < 20 dBm (CE/SRRC/MIC)
- < 33 dBm (FCC)
- 5.1 GHz
- < 23 dBm (CE)
- 5.8 GHz
- < 30 dBm (SRRC)
- < 33 dBm (FCC)
- < 14 dBm (CE)
- Operating Frequency
- 2.4000-2.4835 GHz
- 5.150-5.250 GHz
- 5.725-5.850 GHz
BATTERY
- Max Charging Power: 20 W (charging when powered off)
- Charging Temperature: 0° C to 50° C (32° F to 122° F)
- Dimensions: 121×65×52.5 mm (L×W×H)
- Chemical System: LiNiMnCoO2
- Runtime: Approx. 3 hours
- Capacity: 3000 mAh
- Voltage: 5.6-8.4 V
- Energy: 21.6 Wh
- Category: Li-ion
WIFI
- Protocol: 802.11 a/b/g/n/ac
- Transmitter Power (EIRP): 2.4 GHz
- < 20 dBm (FCC/CE/SRRC/MIC)
- 5.1 GHz
- < 20 dBm (FCC/CE/MIC)
- 5.8 GHz
- < 20 dBm (FCC/SRRC)
- < 14 dBm (CE)
- Operating Frequency
- 2.4000-2.4835 GHz
- 5.170-5.250 GHz
- 5.725-5.850 GHz
BLUETOOTH
- Operating Frequency: 2.400-2.4835 GHz
- Transmitter Power (EIRP): < 10 dBm
- Protocol: Bluetooth 5.0
GFSK
- Operating Frequency: 2.4000-2.4835 GHz
- Transmitter Power (EIRP)
- < 20 dBm (CE/SRRC/MIC)
- < 26 dBm (FCC)
- Compatibility:
- DJI O4 Air Unit (If released – historically there’s a new Air Unit for each DJI Goggle generation)
- DJI Avata 2

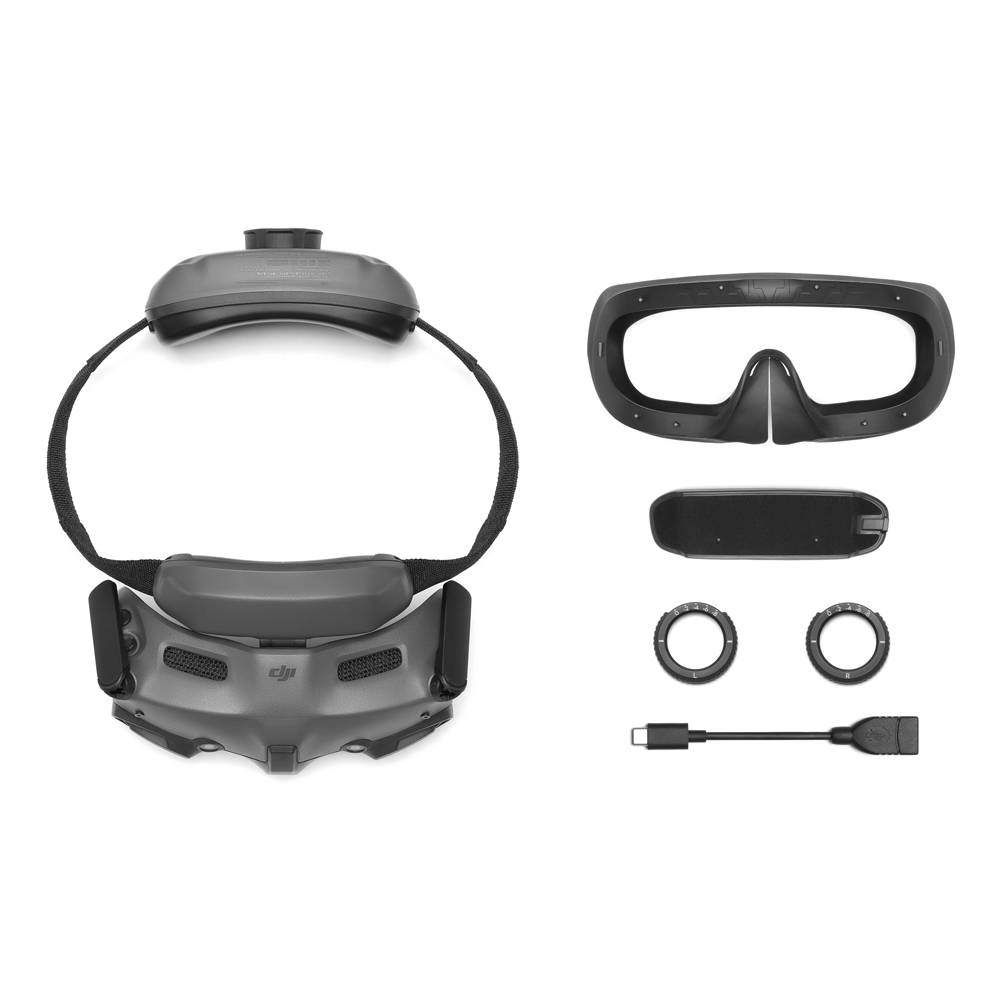

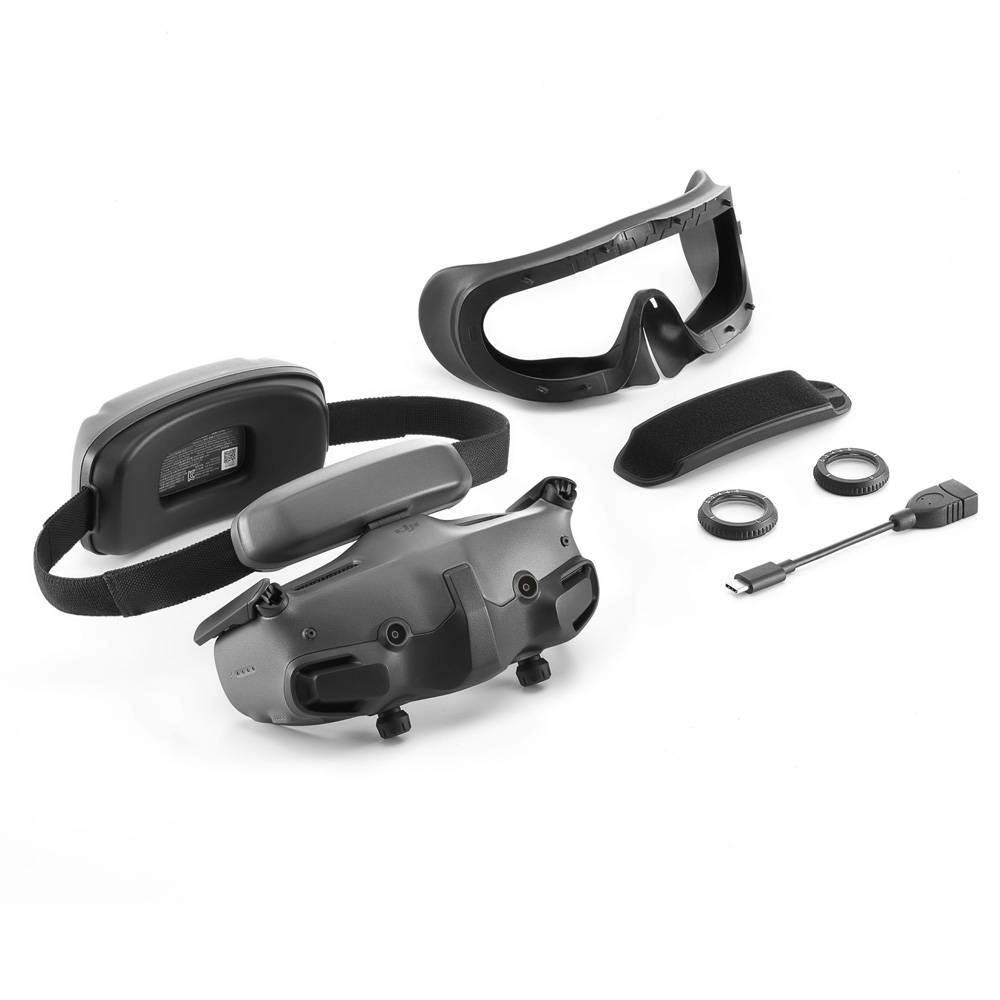

Includes
- 1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
- 1x DJI Goggles 3 Additional Forehead Pad
- 1x DJI Goggles 3 Foam Padding
- 1x USB-C OTG Cable
- 1x DJI Goggles 3

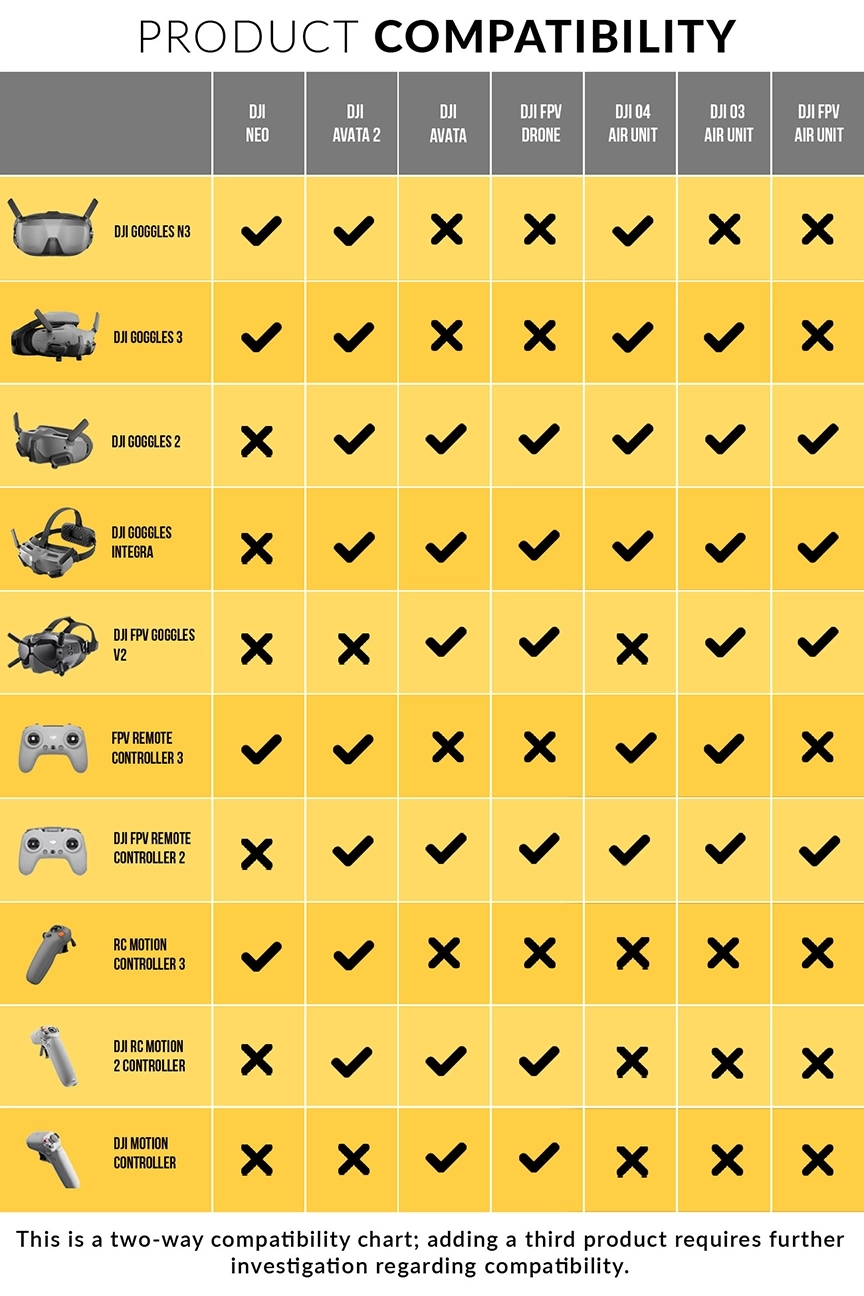

Compatibility Chart
