AOS RC Supernova 1404 4000KV Brushless Motor
₹7,475.00 (Incl. GST)
AOS Supernova was developed by FPV YouTuber Chris Rosser, who is mainly known for testing drone parts. This is a top-notch motor, ranked among the best on the market. The motor is made by RCinpower, which is known for its quality craftsmanship.
The AOS Supernova 1404 4000Kv motor is designed for use with 3-4S batteries and 2.5-4″ propellers. It is suitable for smaller Cinewhoops, 3″ freestyle drones, and 4″ micro long-range drones. The motor meets all expectations of a top-tier motor. The bell and base of the motor are made of durable aluminum alloy 7075. It utilizes high-quality bearings from Japan. The motor is wound with a single wire with heat-resistant insulation up to 260°C and uses rounded magnets N52H.
Key Features:
25% More Thrust
The optimized magnetic design of the Supernova 1404 gives a huge performance advantage on 2.5” and 3” props compared to other 1404 motors, while the moderate KV reduces motor heating at full throttle.
30% Better Torque
A thicker flux ring and fine-tuned magnet overhang deliver a 30% uplift in torque compared to other 1404 motors. This additional torque is particularly valuable on Cinewhoop drones with bullnose props which are heavier and require more torque to accelerate.
Top Tier Efficiency
Usually, more power comes at the cost of efficiency. The Supernova 1404 breaks this rule, trading blows with the most efficient 1404 motors available despite a 25% power advantage.
Highest Performing 1404
The Supernova 1404 is the highest performing 1404 motor Chris Rosser has ever tested by a substantial margin.

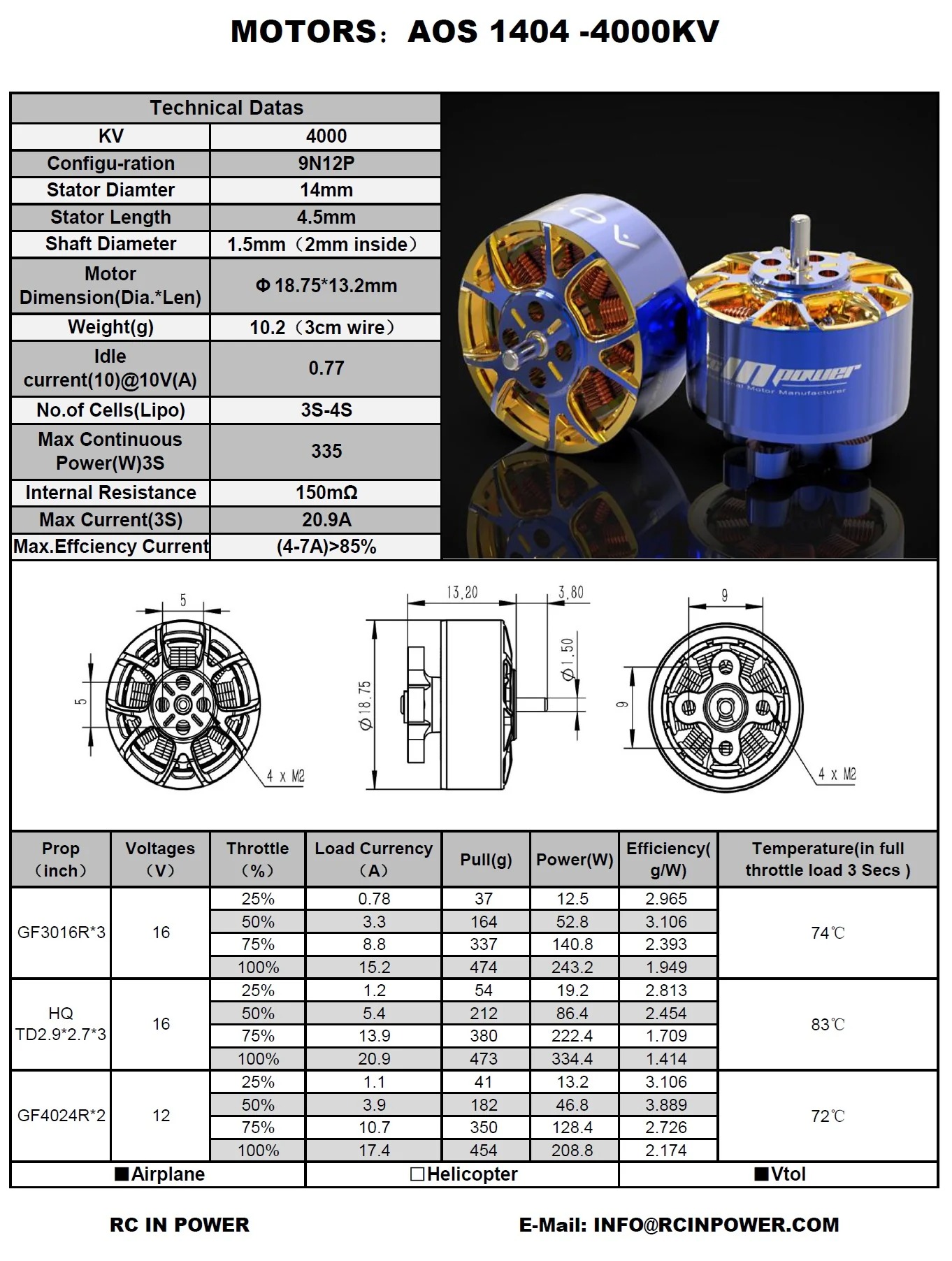

Technical Specs
What do you do when you’ve broken the world drone speed record with a motor capable of 580 kph? You bring that technology to the most popular drone category in the world: Sub-250g!
If you are seeking the ultimate performance for your sub-250g build this is it. Built on the world-drone-speed-record-breaking technology of the AOS Supernova 3220, the AOS Supernova 1404 is engineered to deliver more torque, more power, and a more exciting flying experience than any 1404 before it.
The motor is optimized for driving 2.5” Bullnose or 3” Freestyle Tri-blade props on 4S battery voltage. On the thrust test stand and in the air, Chris Rosser found the Supernova 1404 outperforms any other 1404 motor he’s tested on the market, producing more thrust and a faster response without sacrificing efficiency. The Supernova 1404 broaches no compromises, delivering the smoothest footage on a Cinewhoop and also blowing away the competition in dynamic freestyle flying.
Built on the incredible success of the AOS Supernova 2207, 2807, and 3220, the 1404 takes the same revolutionary design philosophy and scales it down for the challenging demands of sub-250g drone pilots. Thanks to thousands of finite element simulations including 4D field modelling for the first time, the Supernova 1404 delivers an exhilarating combination of control, power, and efficiency, all in service of the ultimate in-flight performance.
Exceptional designs require exceptional execution. That’s why the AOS Supernova 1404 is manufactured by RCinPower, a brand synonymous with race winning and record breaking motors. This partnership, coupled with AOS’s cutting-edge design approach, ensures that this motor not only meets but exceeds the expectations of the most demanding pilots. With the Supernova 1404, you can experience more than ever before, and still stay under 250g.
For smooth, precise low-throttle control and breathtaking top-end power, AOS recommends applying throttle expo in Betaflight. Start with Throttle MID = 0 and Throttle EXPO = 0.20, adjusting EXPO to fine-tune your desired throttle response. Increase EXPO for greater precision at low throttle or reduce it for a sharper, more aggressive feel.
FEATURES:
- Size: 1404.5
- Kv: 4000
- Shaft: 1.5mm
- Dimensions: Φ18.75*13.2mm
- Magnets: N52H ARC
- Mounting holes: 9mm M2
- Weight: 10.2g (3cm cable)
PACKAGE INCLUDES:
- 1x Motor
- 1x Screw set
| Weight | 25 g |
|---|---|
| Motor Stator Size |
14XX |
| Motor KV |
4000kV |
| Propeller Size |
2.5" Props ,3" Props ,4" Props |
| Product Quantity |
Set of 4 |
