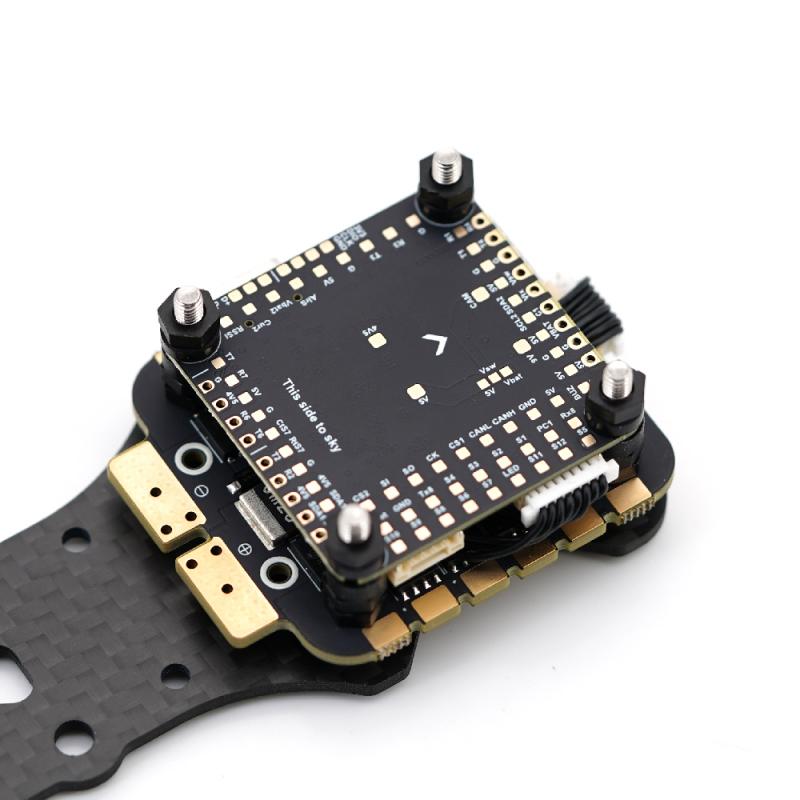

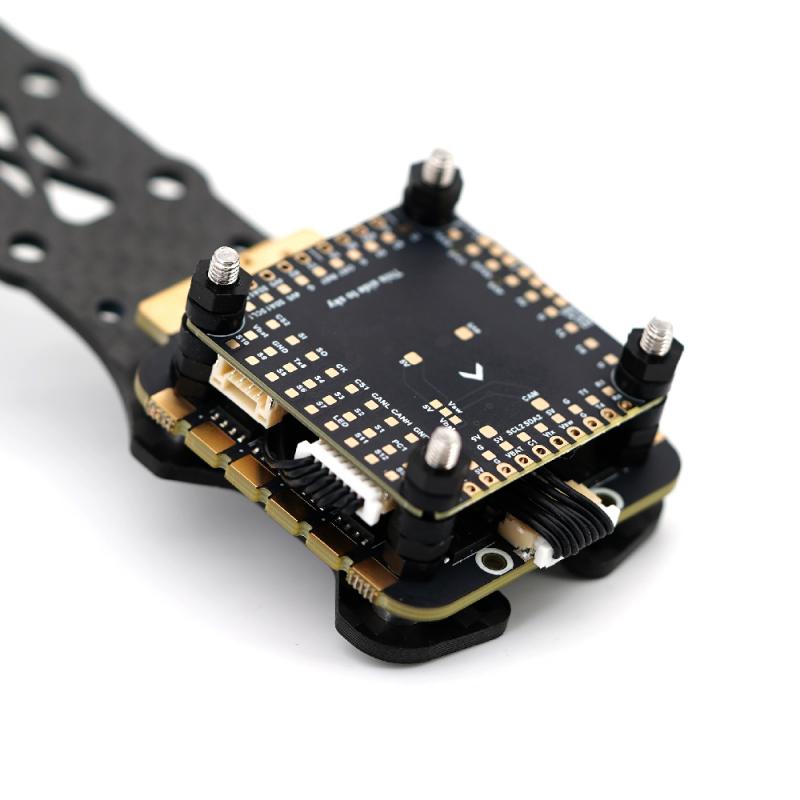

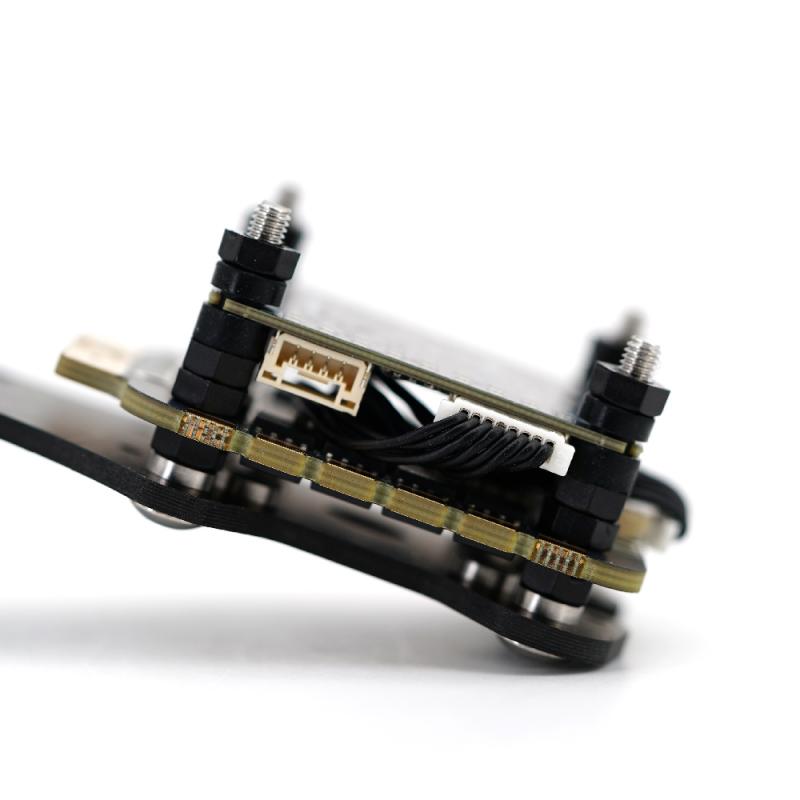

TBS Lucid H7 Stack 8S 60A
₹11,285.00 (Incl. GST)
Out of stock
Push the boundaries of FPV flight with the TBS Lucid H7 Stack, a premium combo of high-end flight control and raw ESC power. Featuring the STM32H743VIH6 processor running at 480MHz, dual ICM42688 gyros, a microSD blackbox, and 13 PWM outputs, the Lucid FC delivers ultra-precise handling and total configurability.
Paired with a 60A AM32-based ESC capable of handling 8S LiPo and 11″ props, this stack is designed for everything from freestyle monsters to long-range cinematic builds like cinelifters. The Gorilla Mount compatibility and dual-size mounting holes make it easy to install in a wide range of frames.
Whether you’re chasing smooth cinematic shots or pushing freestyle boundaries, this stack gives you rock-solid stability, clean power, and future-proof features.
Video: TBS Lucid H7 FC
Video: TBS Lucid 8S 4in1 ESC
FC SPECIFICATIONS – TBS Lucid H7 FC
- MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
- Gyro: ICM42688 x 2 (duo gyro)
- OSD Chip: AT7456E (SPI2)
- Barometer: Infineon DPS310 connected via I2C2.
- PWM Outputs: 13 channels, including a dedicated “LED” pad.
- Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
- UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
- I2C Buses: 2 available.
- CAN Bus: 1 available.
- Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
- LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
- Breakout: SPI3 breakout available.
- USB Interface: Type-C connector (USB 2.0 standard).
- JST Connectors:
- 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
- Dual Camera Input: Switchable inputs for two cameras.
- Power Control: Switch for filtered 5V/Vbat output power.
- DJI FPV OSD: Compatible via any spare UART port.
FC Power Specifications
- Input Voltage: 6 – 36V (2 to 8S LiPo).
- BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)
- LDO 3.3V: Supports up to 200mA.
- Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider).
- Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot.
FC Firmware Targets
- ArduPilot: TBS_LUCID_H7
- BetaFlight: TBS_LUCID_H7
- INAV: TBS LUCID_H7
ESC SPECIFICATIONS – TBS Lucid 8S 4in1 ESC
| ESC software: | AlkaMotors32 (AM32) |
| ESC target: | tbslu8s4in1 |
| Rated current: | 55A x 4, 60 seconds |
| Peak Current: | 85A x 4, 10 seconds |
| Propellers: | Up to 11″, over 7″ requires good airflow |
| Input: | 3-8S Lipo |
| Protocol: | Bi-directional Dshot 300/600, KISS ESC Telemetry |
| ESC current port: | Yes |
| BEC: | No |
| Size: | 50mm*42mm |
| Mounting: | Gorilla-mount (39.5 x 16.0mm) & 30.5×30.5 mm or brackets for 20×20 mm, |
| Weight: | 17.58g, 22g incl. brackets |
PACKAGE INCLUDES:
- TBS Lucid H7 FC
- FC-to-ESC cable (plug & play)
- DJI O3 cable (plug & play)
- 4pcs M3 rubber dampers
- 4pcs M3x8 screws
- TBS Lucid 8S 4in1 ESC
- 4x 2.2x4mm standoffs
- Aluminum top bracket for 20×20 FCs
- XT60 power connector
- 560uF 8S Capacitor
- 4x M2x12 screws
- 4x M2x14 screws (for 30×30 mount)
Downloads:
| Weight | 60 g |
|---|---|
| Brand |
Team Blacksheep |
| Flight Controller Processor |
H7 |
| Gyro |
ICM42688P |
| ESC Firmware |
AM_32 |
