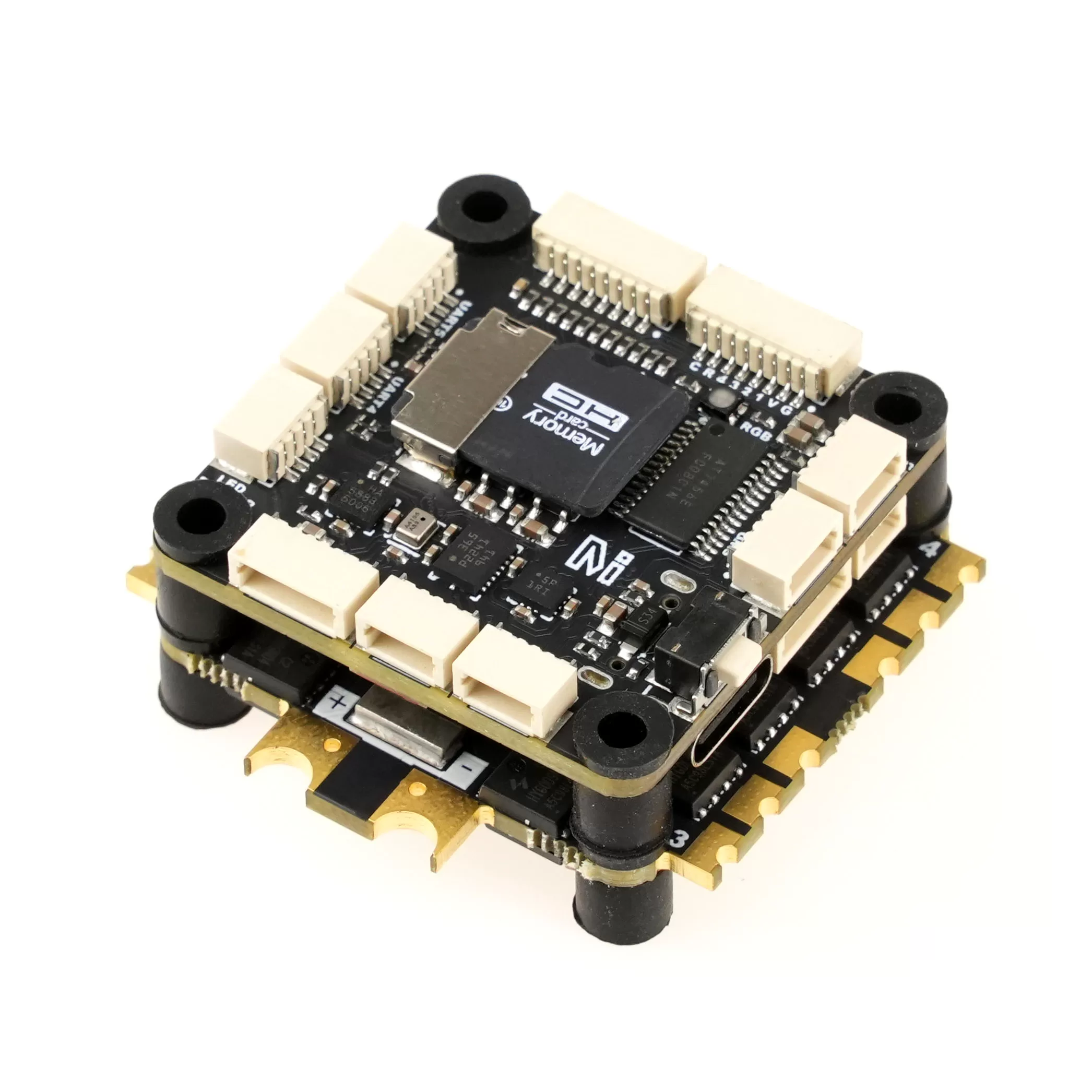

Name: MicoAir743 V2 AM32 55A 30×30 FC&ESC Stack
Availability: OutOfStock

Description

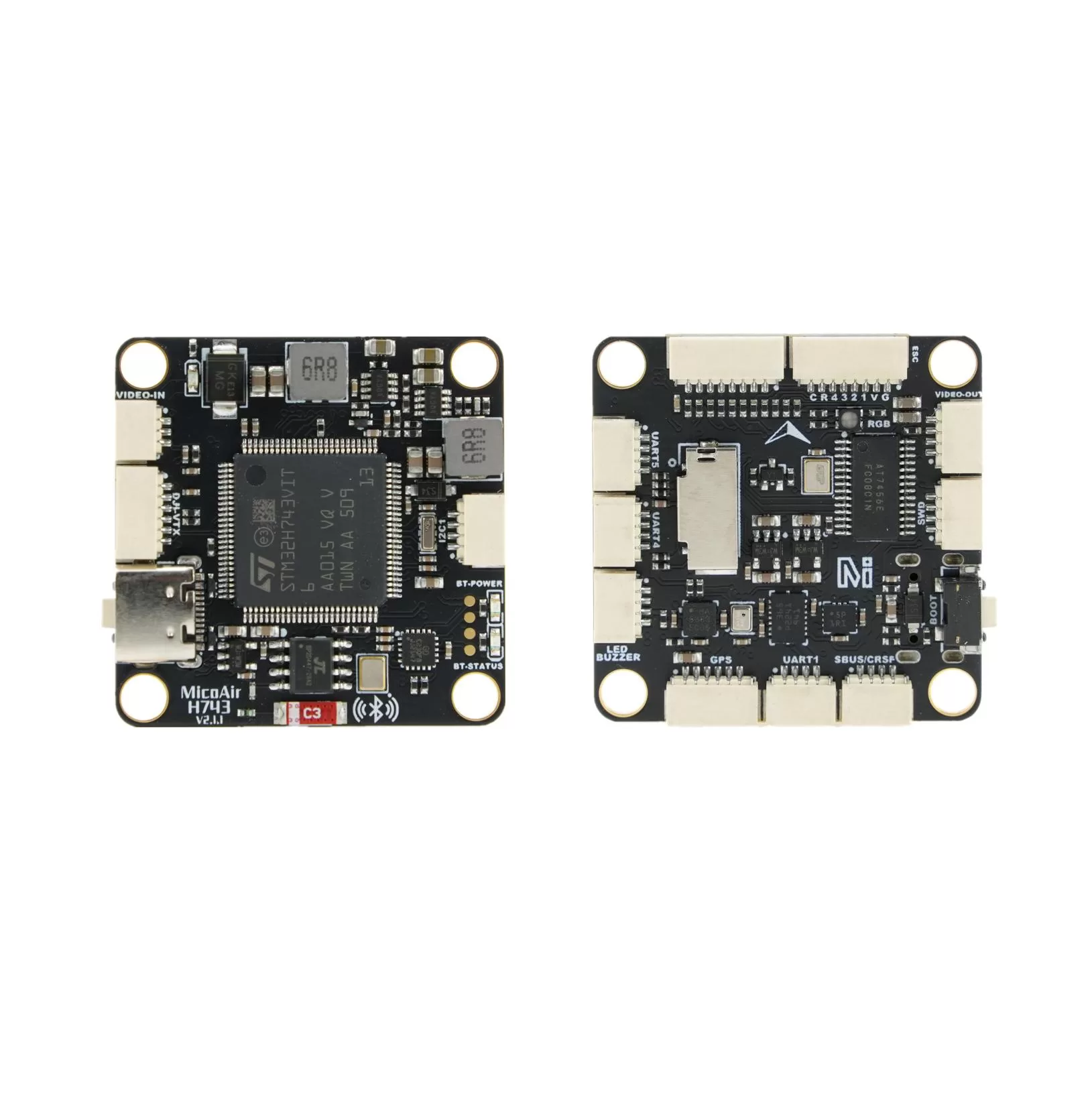

MicoAir H743 V2 is a combination of flight controller and ESC, suitable especially for 5–7″ drones powered by 2–6S LiPo batteries. The stack is also ideal for drones with advanced stabilization or autonomous flight capabilities. The flight controller is well-equipped. MicoAir H743 V2 supports Ardupilot firmware (default), PX4, as well as Betaflight and iNav. Thanks to its rich feature set, it allows connection of a wide range of sensors, servos, and other peripherals. The board includes an SD card slot for storing logs, missions, or terrain elevation maps.

The core of the controller is a powerful STM32H743 processor, two gyros: BMI088 and BMI270, a SPL06 barometer, and a QMC5883L magnetometer (we recommend using an external one as well). The board features 8 UARTs and an I2C bus for peripheral connectivity. It offers 11 PWM outputs for motors, servos, switches, or other accessories. Additional features include a USB-C connector, OSD chip for analog video, and built-in 5V/3A and 12V/3A BECs. It supports input voltage from 6–27V (2–6S LiPo). The board also features an integrated Bluetooth module (UART8) for wireless PC connectivity.

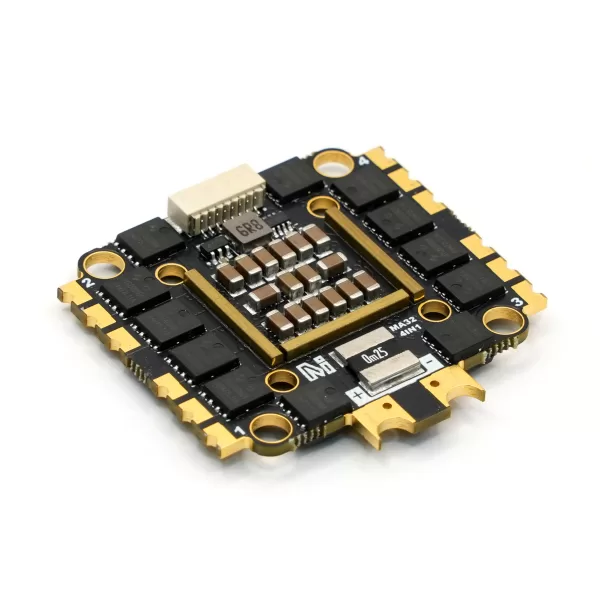

The stack includes 55A ESCs with AM32 firmware. The ESCs are equipped with a current sensor and a TVS diode that helps protect them from voltage spikes. The ESCs do not support temperature reading.

Specifications

MCU: STM32H743VIT6, 480MHz, 2MB Flash
IMU: BMI088+BMI270
Baro: SPL06
Compass: QMC5883L
OSD: AT7456E
MicroSD Card Slot
8x UART
11x PWM
1x I2C
1x SWD
2x ADC (VBAT, Current)
USB Type-C
DJI O3/O4 VTX connector
BEC 5V 3A output (for controller, receiver, GPS, optical flow or other devices)
BEC 12V 3A output (for video transmitter, camera)
Bluetooth Telemetry (connected to UART8 internally, baudrate 115200)
VBAT Input Range: 2-6S (6-27V)

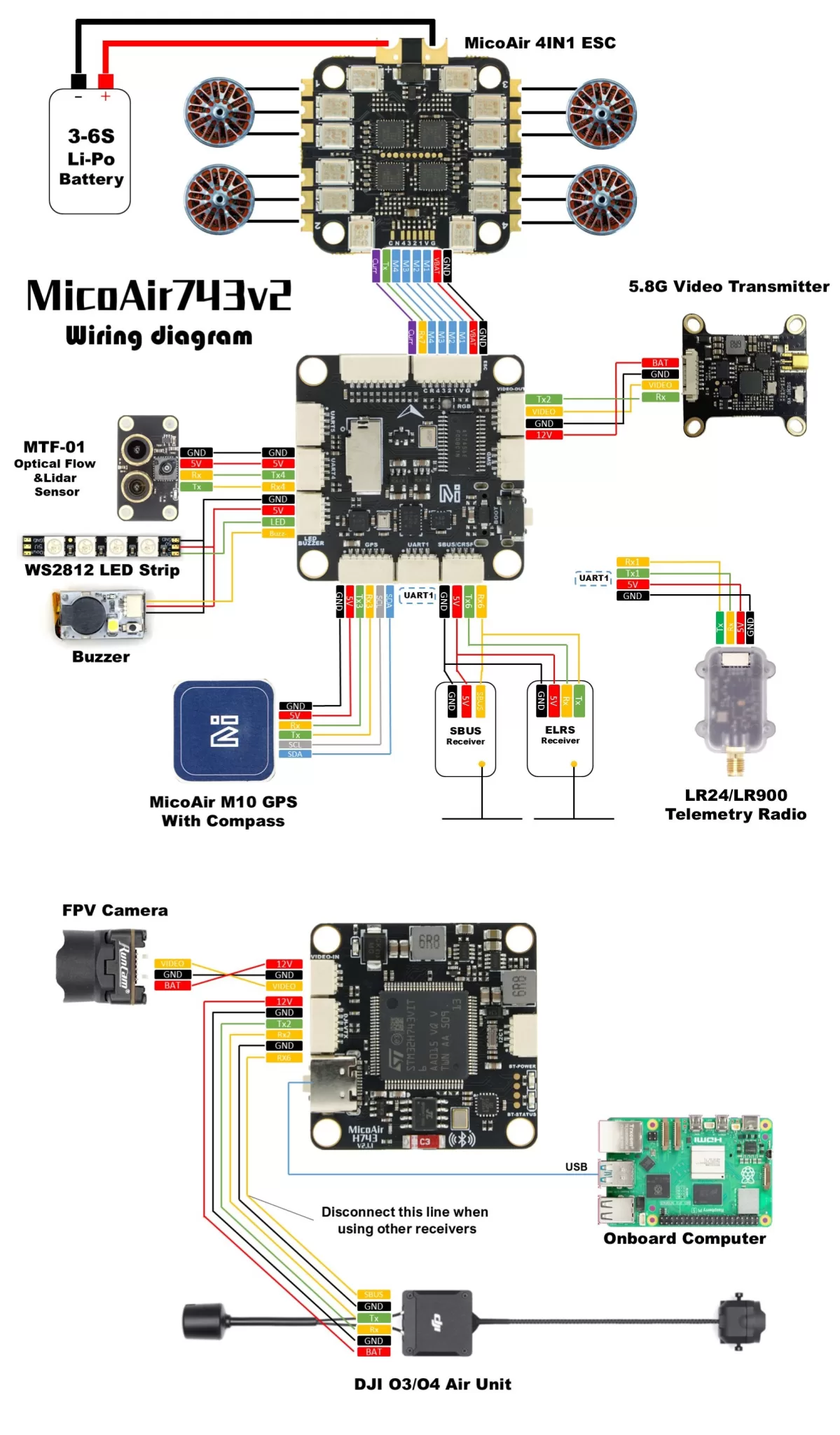

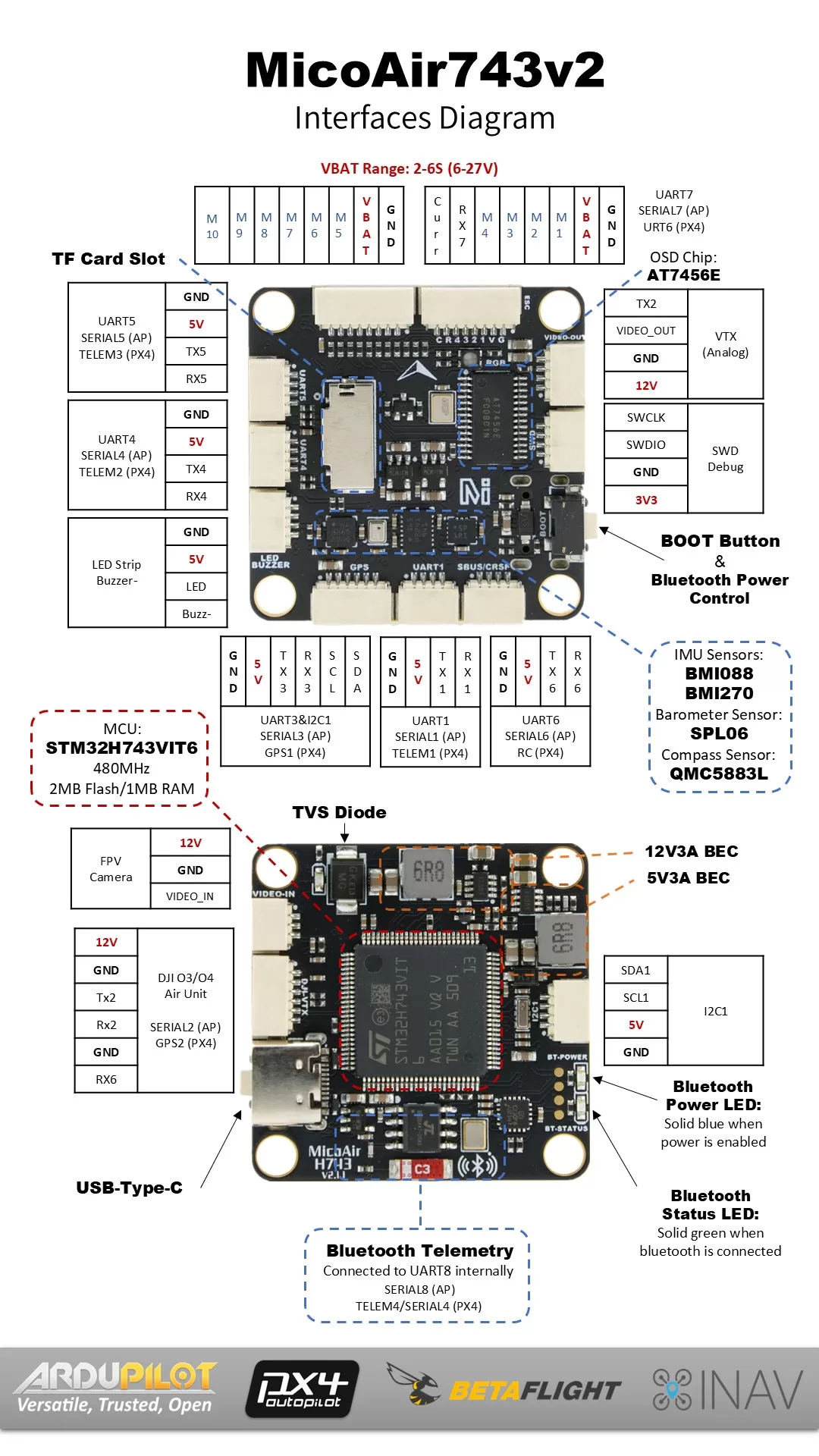

UART Mapping (Ardupilot)

SERIAL0 -> USB
SERIAL1 -> UART1 (MAVLink2, DMA-enabled)
SERIAL2 -> UART2 (DisplayPort, DMA-enabled)
SERIAL3 -> UART3 (GPS, DMA-enabled)
SERIAL4 -> UART4 (MAVLink2, DMA-enabled)
SERIAL5 -> UART5 (DMA-enabled)
SERIAL6 -> UART6 (RCIN, DMA–enabled)
SERIAL7-> UART7 (ESC Telemetry, DMA-enabled)
SERIAL8 -> UART8 (DMA–enabled, connected to on board BlueTooth Telemetry)

UART Mapping (PX4)

ttyACM0->USB
ttyS0->TELEM1 -> UART1
ttyS1->GPS2 -> UART2
ttyS2->GPS1 -> UART3
ttyS3->TELEM2 -> UART4
ttyS4->TELEM3-> UART5
ttyS5->RC -> UART6
ttyS6->URT6 -> UART7
ttyS7->TELEM4/SERIAL4 -> UART8

RC Input (Ardupilot)

The UART6 is compatible with all ArduPilot supported receiver protocols.

PPM is not supported.
SBUS/DSM/SRXL connects to the RX6 pin.
FPort requires connection to TX6 . See FPort Receivers.
CRSF also requires a TX6 connection, in addition to RX6, and automatically provides telemetry.
SRXL2 requires a connection to TX6 and automatically provides telemetry. Set SERIAL6_OPTIONS to “4”.

Any UART can also be used for RC system connections in ArduPilot and is compatible with all protocols except PPM. See Radio Control Systems for details.

OSD Support (Ardupilot)

The MicoAir743v2 supports onboard OSD using OSD_TYPE 1 (MAX7456 driver). Simultaneously, DisplayPort OSD is available on the HD VTX connector, See below.

VTX Support

The SH1.0-6P connector supports a DJI Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Pin 1 of the connector is 12v so be careful not to connect this to a peripheral requiring 5v.

PWM Output

The MicoAir743v2 supports up to 11 PWM outputs.

Channels 1-8 support DShot and bi-directional DShot.

(currently PX4&INAV not support BDShot function)

PWM output share grouped and every group must use the same output protocol:

1,2,3,4 are group 1

5,6 are group 2

7,8,11 are group 3

9,10 are group 4

Note: PWM11 is the “LED” pin. If this is configured for serial LED use then PWM 7 and 8 can only be used as serial LED also.

Battery Monitoring

The board has a internal voltage sensor and connections on the ESC connector for an external current sensor input.

The voltage sensor can handle up to 6S LiPo batteries.

The default battery parameters(for Ardupilot) are:

BATT_VOLT_PIN 10
BATT_CURR_PIN 11
BATT_VOLT_MULT 21.2
BATT_CURR_SCALE 40.2

Compass

The MicoAir743v2 has a built-in compass sensor (QMC5883L), and you can also attach an external compass using I2C on the SDA and SCL connector.

Physical

Mounting: 30.5 x 30.5mm, Φ4mm
Dimensions: 36 x 36 x 8 mm
Weight: 10g
