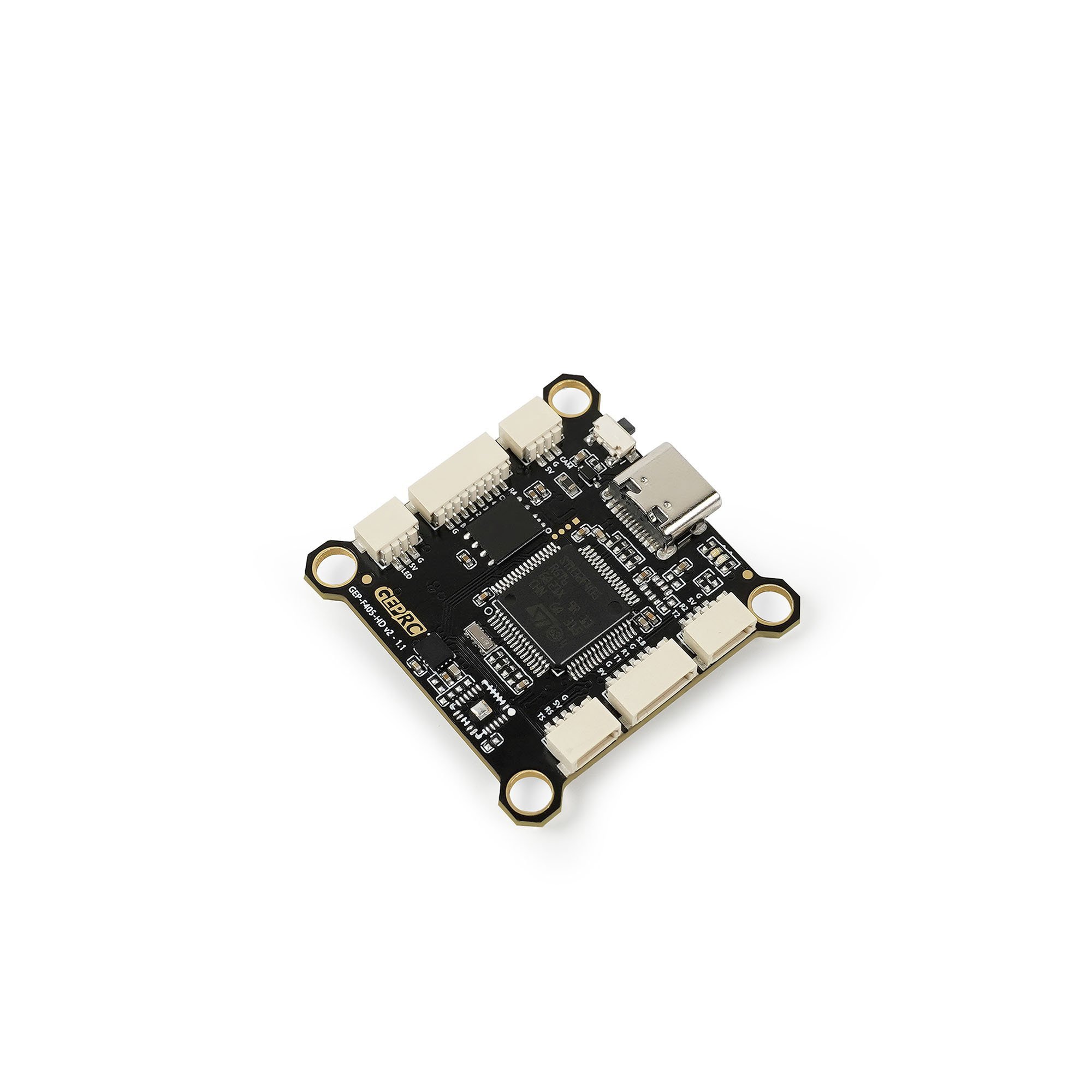

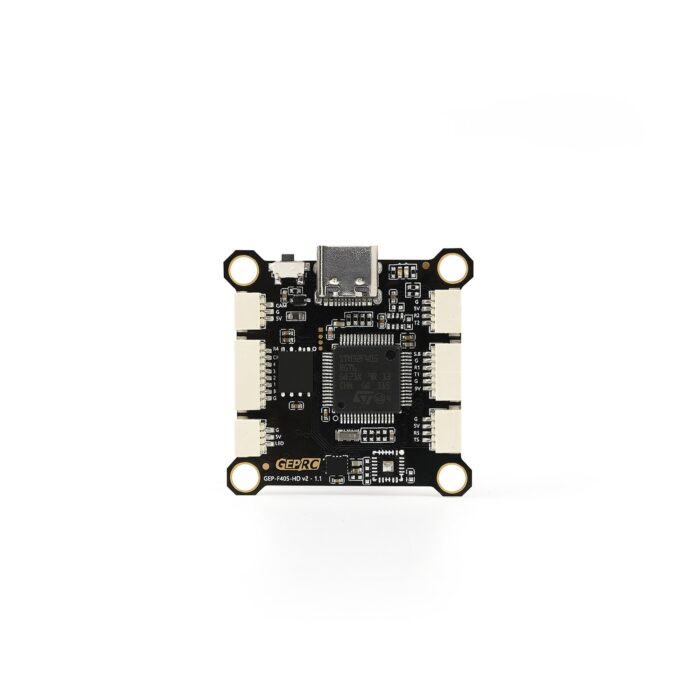

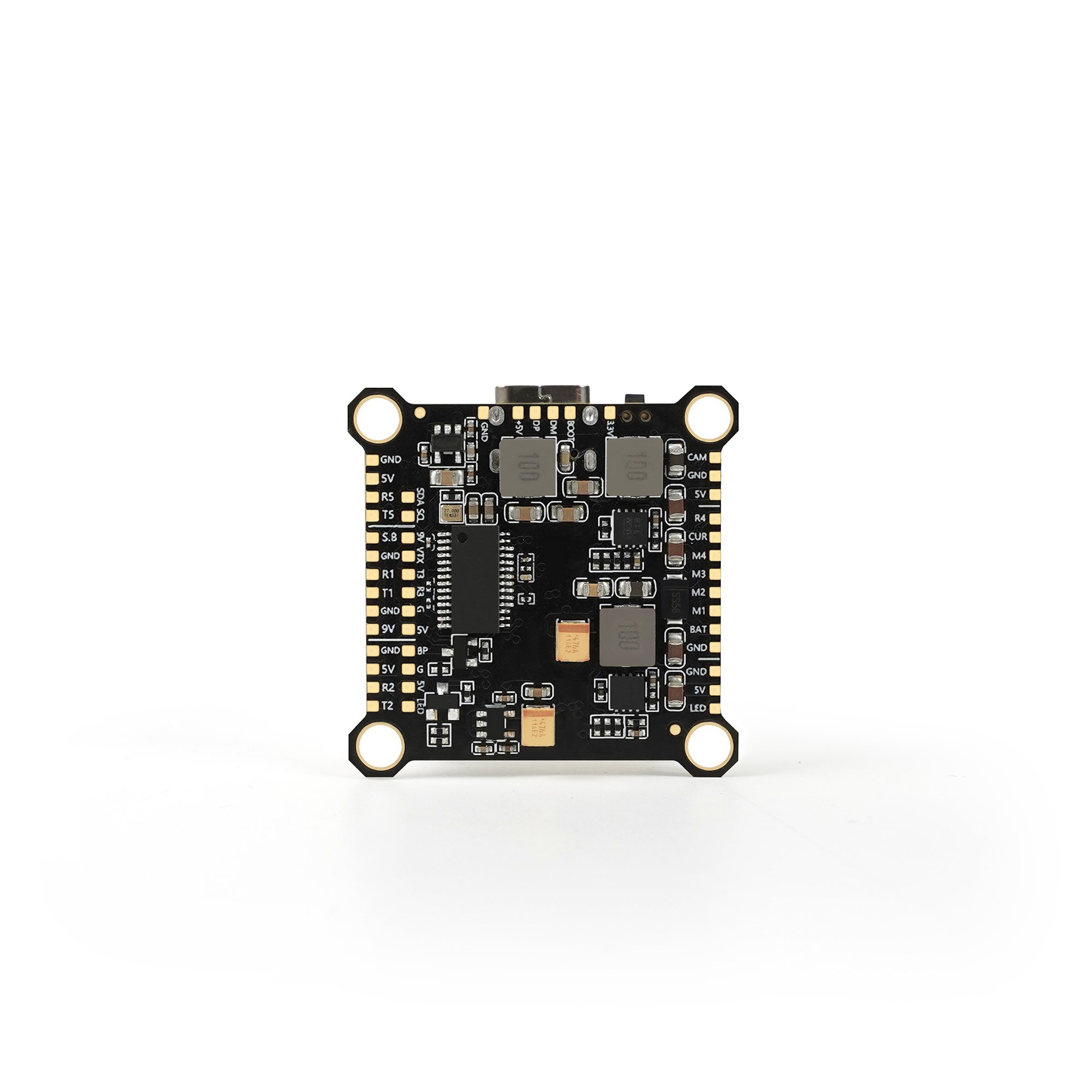

GEPRC F405-HD V2 Flight Controller

FEATURES:

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
8. 9V 2.5A + 5V 3A dual independent BEC

SPECIFICATIONS:

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target：GEPRCF405

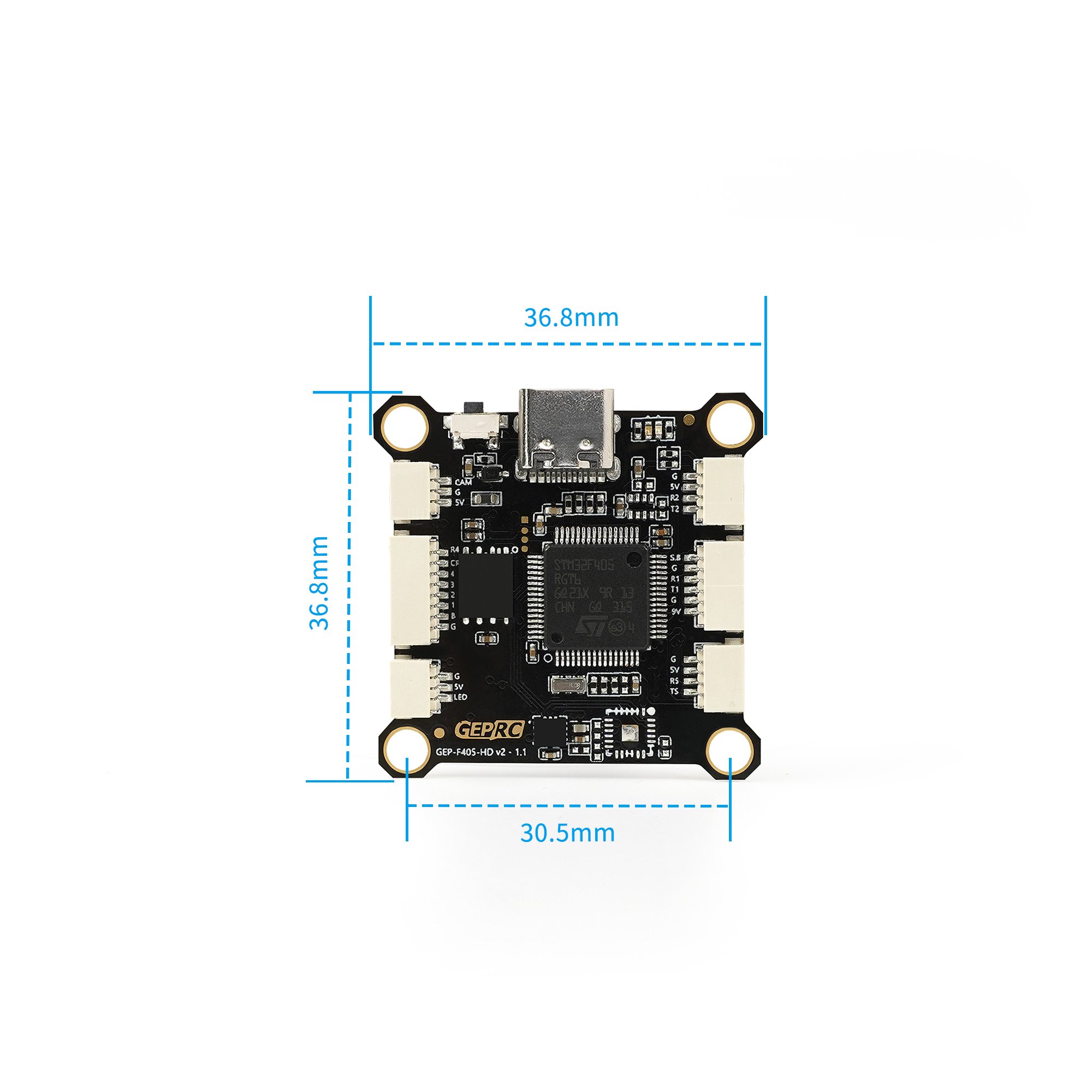

• Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：6
• Power Filter：Integrated LC filter

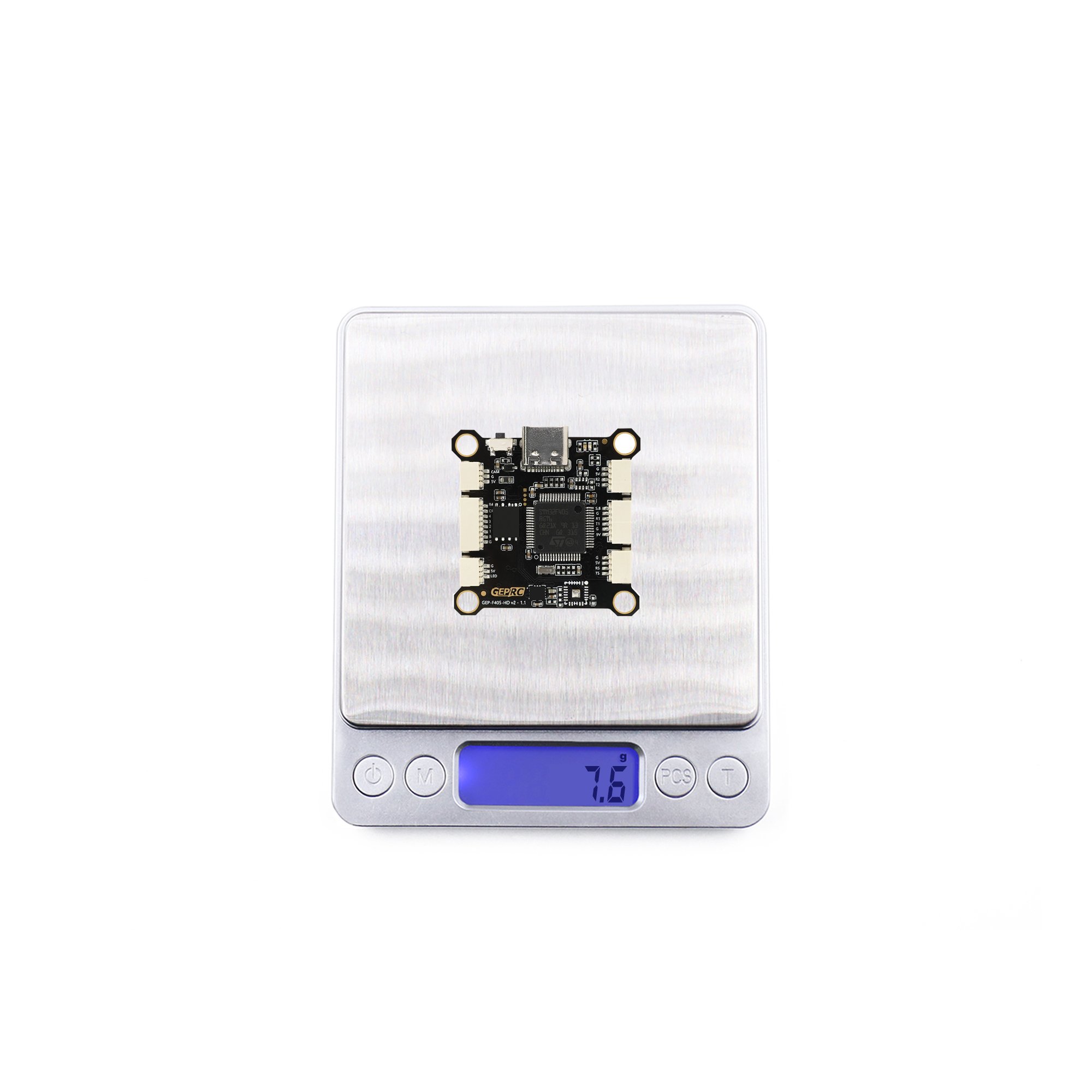

• Weight：7.7g

PACKAGE INCLUDES:

• 1 x Flight Controller
• 1 x DJI Air Unit Adapter Cable
• 1 x Flight Controller Adapter Cable
• 4 x Nylon nuts
• 4 x Silicone grommets
• 2 x sh1.0 4pinsilicone cable
• 1 x Camera connection cable
