Foxeer Predator 5 Nano FPV Camera

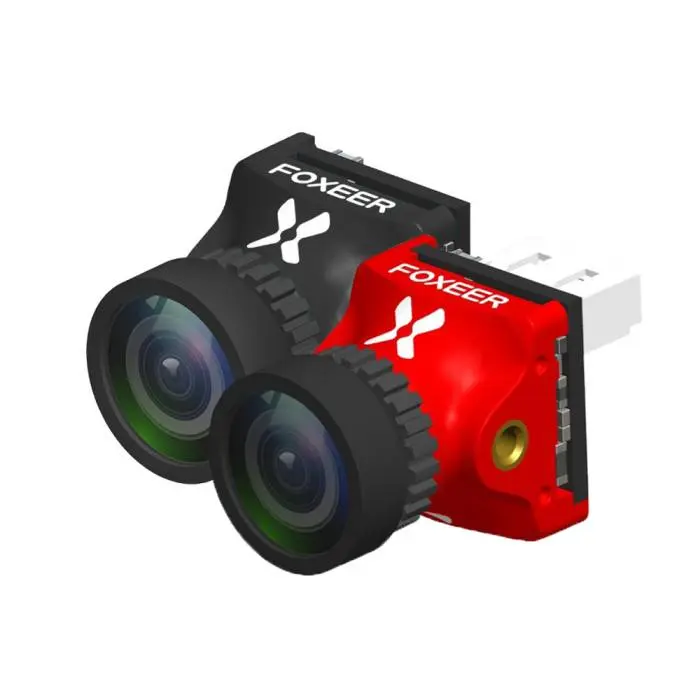

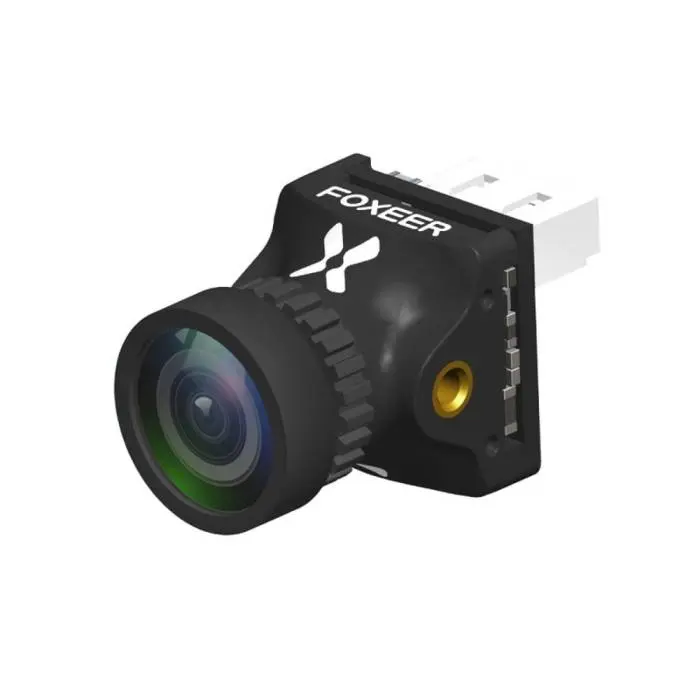

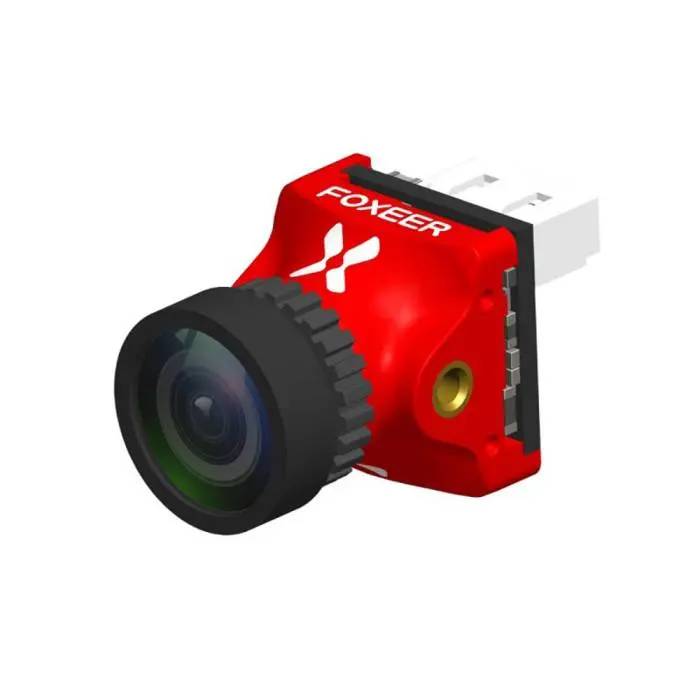

The Predator 5 Nano 1000TVL M8 is a 14x14mm or 19x19mm (with brackets) FPV camera by Foxeer that comes in a plug or pad version. This camera features a 1/3″ CMOS sensor, 1000TVL resolution, 4ms latency, NTSC/PAL switchable, image flip, super WDR function, and many other cool features! Compare to the Predator 4, the Predator 5 has a more natural image, and it is also exclusive for LEDs.

This is the Plug version.

Specifications of Foxeer Predator 5 Nano

• Sensor Type: Sony 1/3″ CMOS Sensor
• Scale: 4:3(default)/16:9 Switchable
• Tv System: PAL(default)/NTSC Switchable
• Resolution: 1000TVL
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output CVBS Analog Signal
• FOV: FOV-H: 120° FOV-D: 155°
• Shutter Speed: Auto
• Minimum Illumination: 0.01Lux
• White Balance: Auto
• DNR: 3DNR 2DNR
• WDR: Super WDR
• Mode: DAY/CLOUDY/Night/LED
• Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
• Input Voltage: 4.5V~20V
• Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V

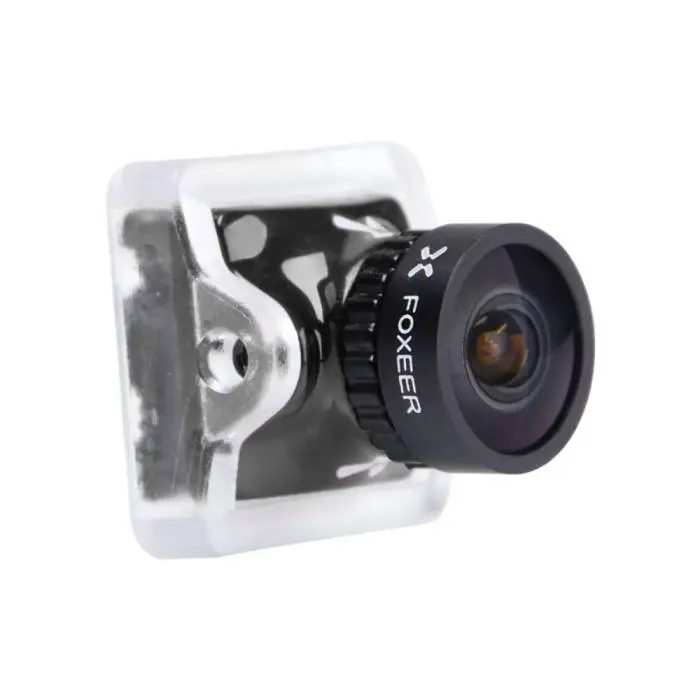

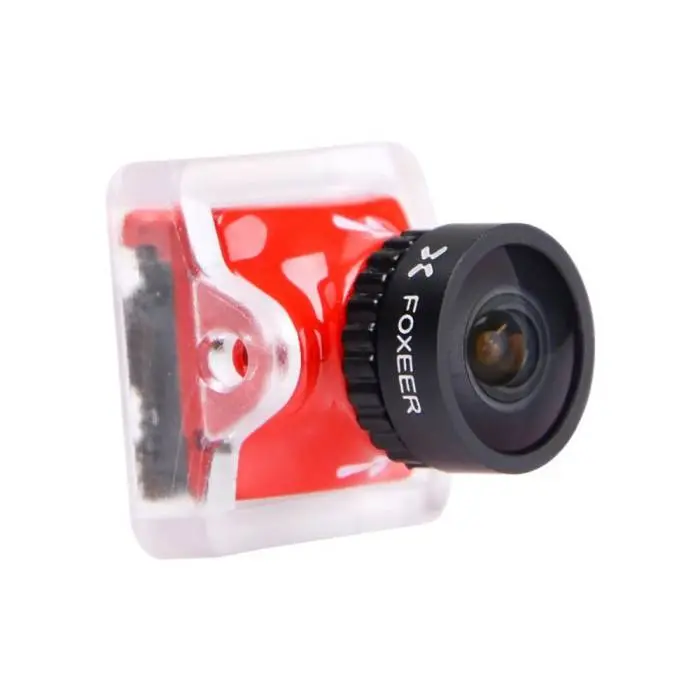

• Dimension: 14*14mm; 19*19mm(Add Bracket)
• Weight: Plug:4.8g Solder Pad:4.3g(Exclude cable)

Includes

• 1 x Foxeer Predator 5 Micro – Full Case
• 1 x OSD Board
• 4 x Bracket Screws
• 4 x Bracket Ring
• 1 x 2pin OSD Cable
• 1 x Servo Cable
